Product data sheet

sinus surface light white 1530mm

R33A153-9016E1940L1S

Planlicht

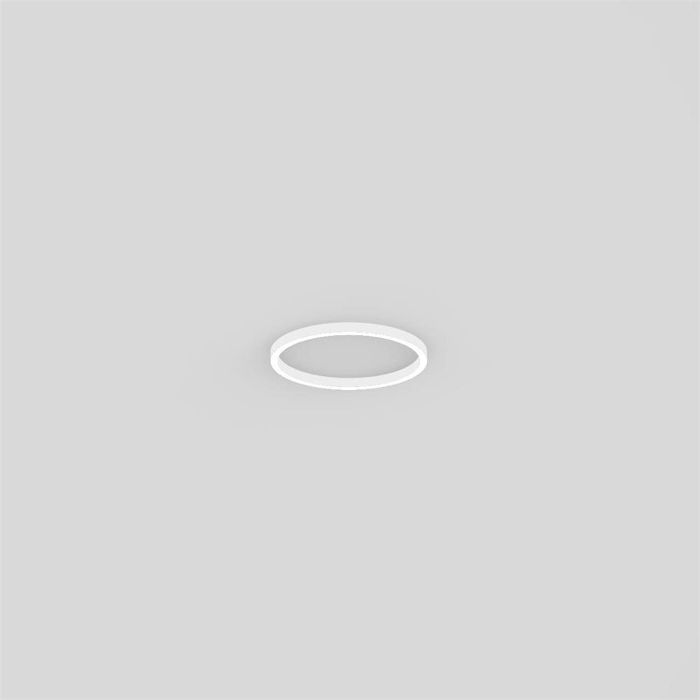

Product image 1: sinus surface light white 1530mm
Product image 1: sinus surface light white 1530mm

Product image 1: sinus surface light white 1530mm



IP
40

low output LED 4000K CRI 90 57W 6448lm https://katalog.planlicht.com/en-us/fam-sinus/

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 2 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 3 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 4 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 5 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 6 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 7 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7.12 W 806 lm 113 lm/W 4000 K 90
sinus surface light white 1530mm

sinus surface light white 1530mm

Light output 8 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1530 mm

Width: 1530 mm

Height: 100 mm

Adjustability

Fixed

Electric

System power: 57 W

Protection

IP: 40

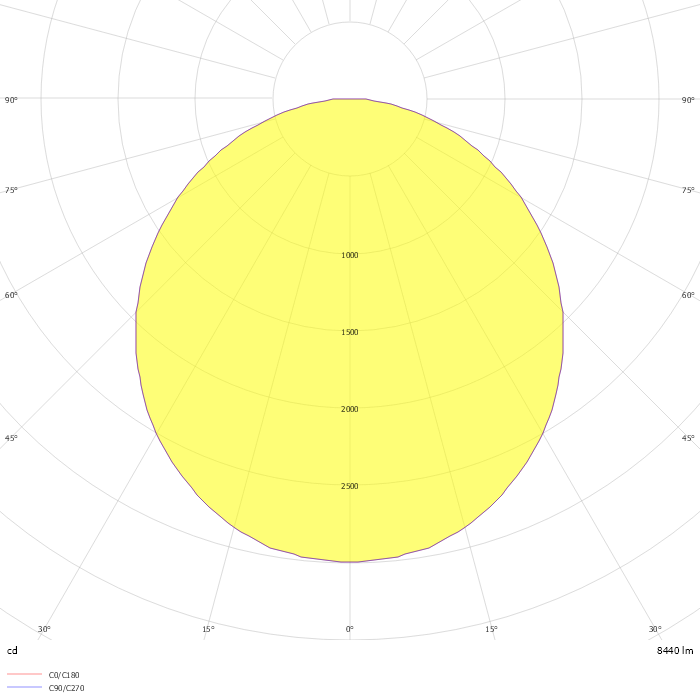

Photometric data

ZIP file

Download file
