Product data sheet
L.ARTIST50
LXF50A-568401-HxxxM
LUX-IT

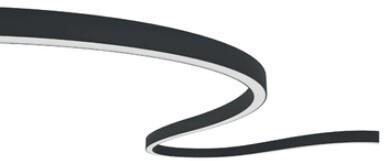

surface mounted direct LED luminaire;
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)
- Light output 5 (integrated)
- Light output 6 (integrated)
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 4.94 W | 606 lm | 123 lm/W | 4000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 4.94 W | 606 lm | 123 lm/W | 4000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 4.94 W | 606 lm | 123 lm/W | 4000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 4.94 W | 606 lm | 123 lm/W | 4000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 4.94 W | 606 lm | 123 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1358 mm
Width: 1555 mm
Height: 80 mm
Adjustability
Fixed
Electric
System power: 29.64 W
Protection
IP: 20
Designation labels: CE

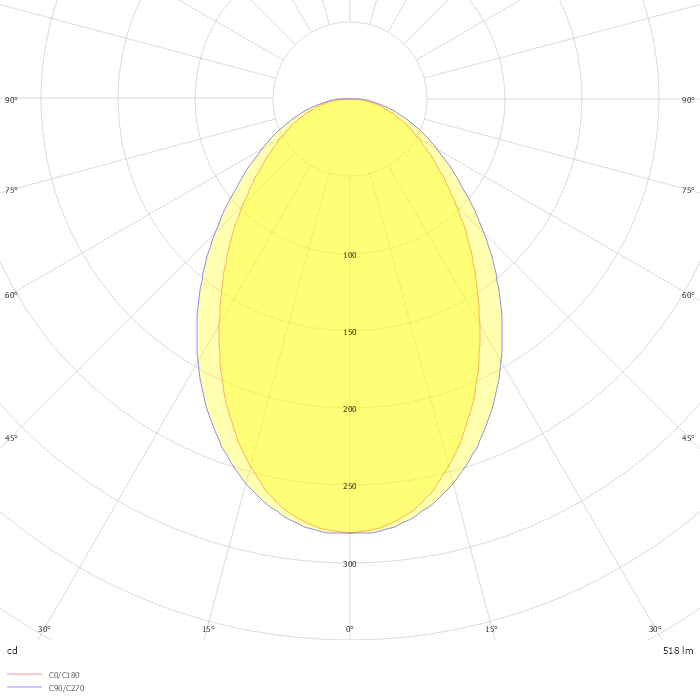

Photometric data
ZIP file
