Product data sheet

FEMTOLINE 35 F HE DOWN-UP - PROFILE

392 02 00 00

Delta Light

Product image 1: FEMTOLINE 35 F HE DOWN-UP - PROFILE
Product image 1: FEMTOLINE 35 F HE DOWN-UP - PROFILE

Product image 1: FEMTOLINE 35 F HE DOWN-UP - PROFILE



392 02 00 00 FEMTOLINE 35 F HE DOWN-UP - PROFILE

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 1.5 W 181 lm 121 lm/W 4000 K 90
1 x LED 1.5 W 181 lm 121 lm/W 4000 K 90
1 x LED 0.5 W 54 lm 108 lm/W 4000 K 90
1 x LED 0.5 W 54 lm 108 lm/W 4000 K 90
1 x LED 2 W 244 lm 122 lm/W 4000 K 90
1 x LED 2 W 244 lm 122 lm/W 4000 K 90
FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 1

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 1

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 1

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 1

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 1

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 1

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 2 W 244 lm 122 lm/W 4000 K 90
1 x LED 2 W 244 lm 122 lm/W 4000 K 90
1 x LED 1.5 W 181 lm 121 lm/W 4000 K 90
1 x LED 1.5 W 181 lm 121 lm/W 4000 K 90
1 x LED 0.5 W 54 lm 108 lm/W 4000 K 90
1 x LED 0.5 W 54 lm 108 lm/W 4000 K 90
FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 2

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 2

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 2

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 2

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 2

1 x LED

FEMTOLINE 35 F HE DOWN-UP - PROFILE

FEMTOLINE 35 F HE DOWN-UP - PROFILE

Light output 2

1 x LED

Mounting mode

Pendant

Shape and measurements

Length: 28 mm

Width: 100 mm

Height: 1 mm

Electric

System power: 1.2-4.8 W

Appliance Class: II

Protection

Designation labels: CE

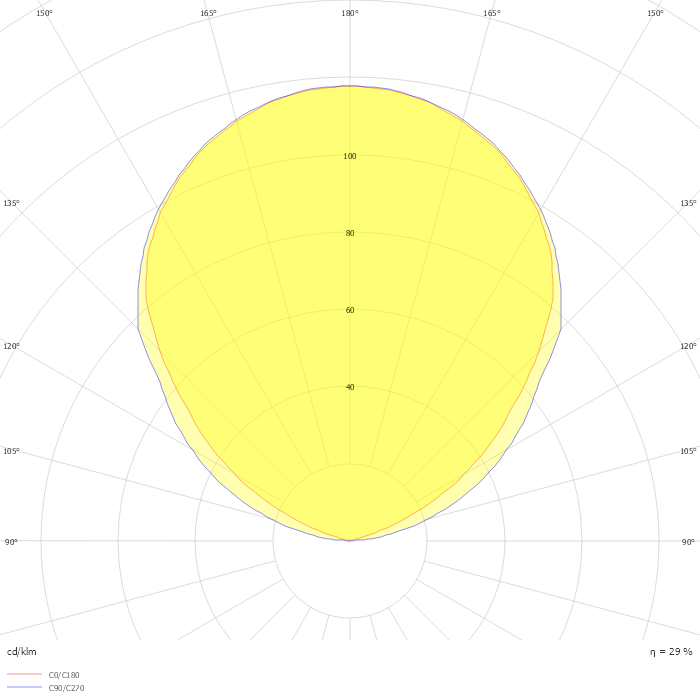

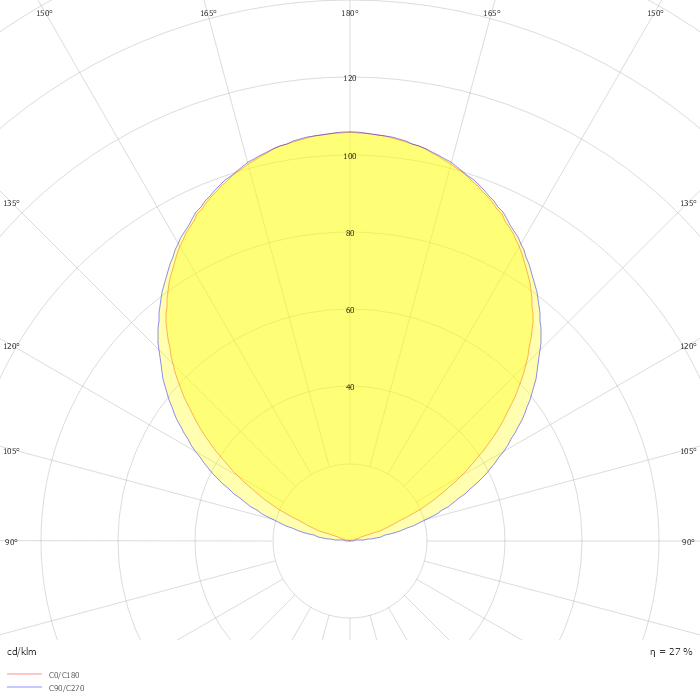

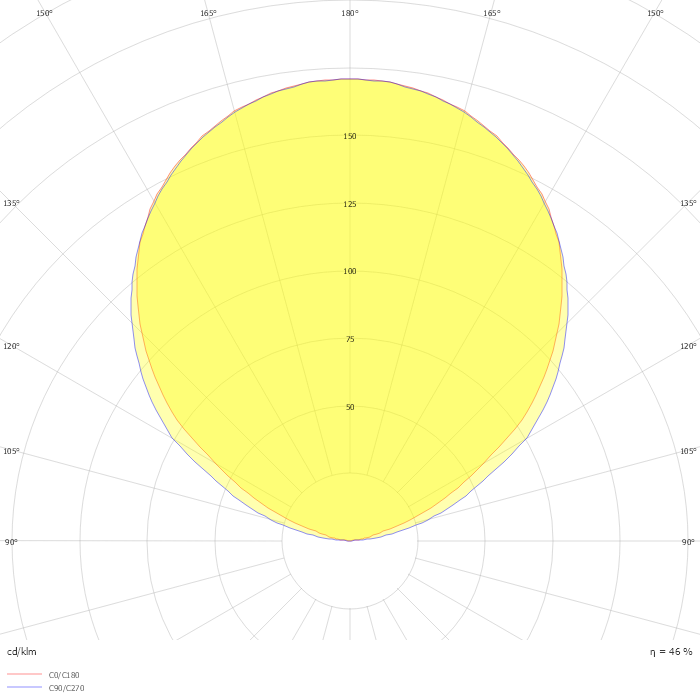

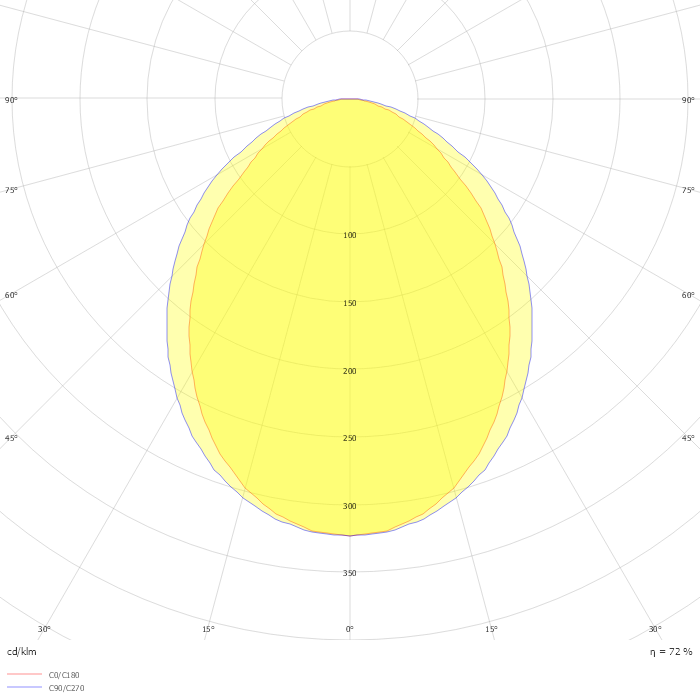

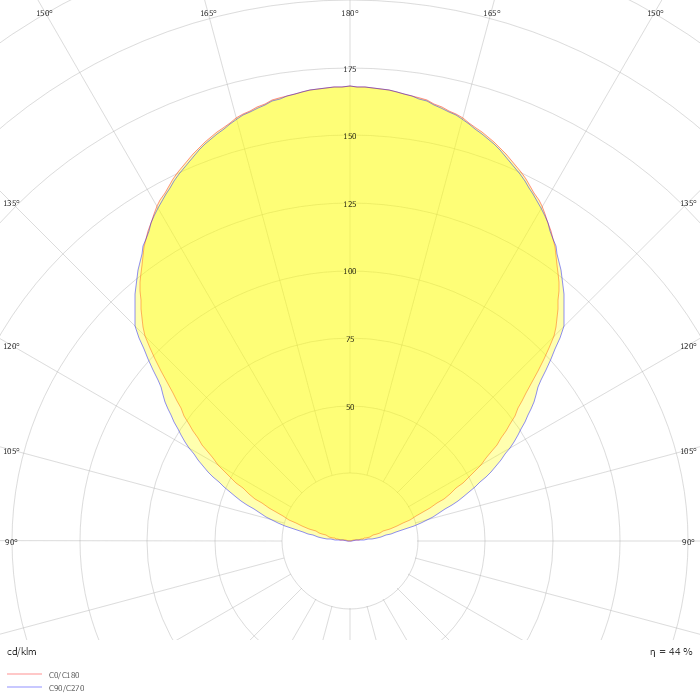

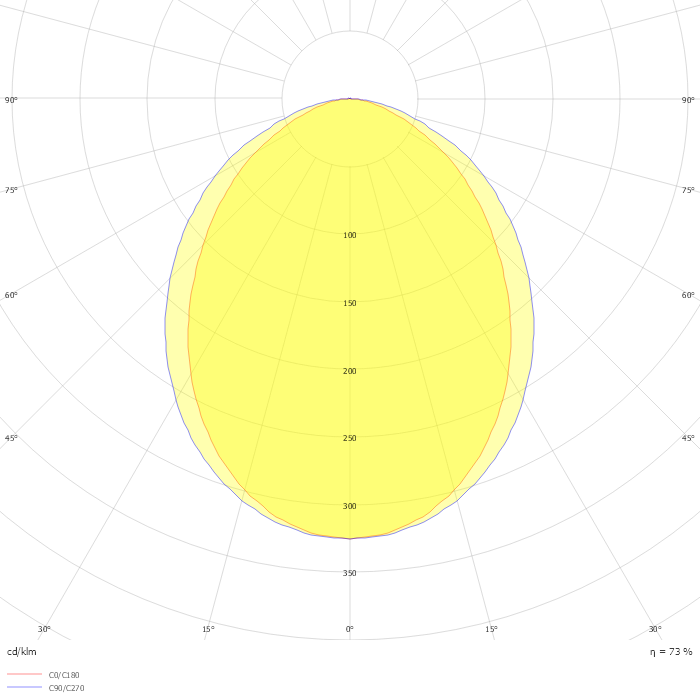

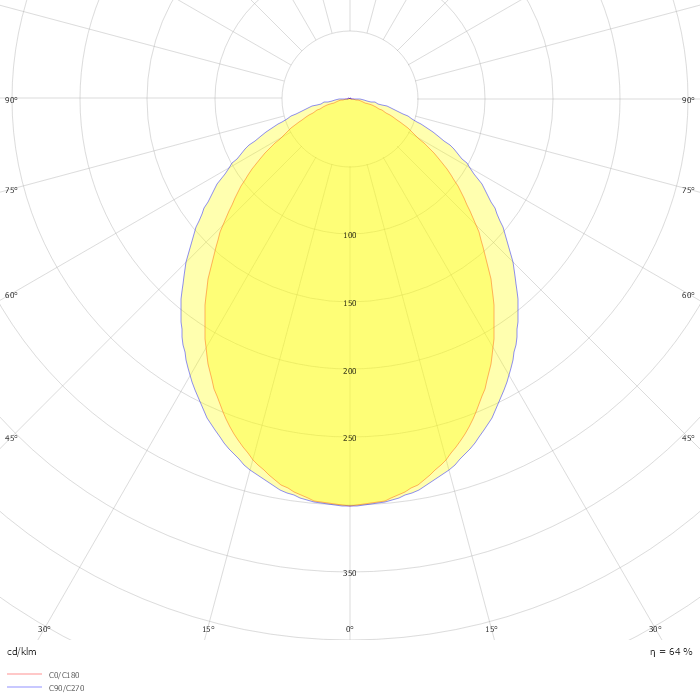

Photometric data

ZIP file

Download file
