Hoja de dato de productos

Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

AC09H4R5

Thorlux Lighting

Imagen de productos 1: Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting
Imagen de productos 1: Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

Imagen de productos 1: Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting



IP
65

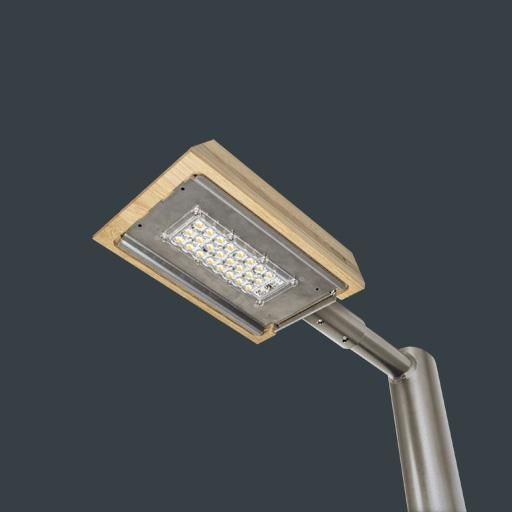

Acorn has been engineered to redefine the benchmarks of sustainability. Crafted with a commitment to environmental responsibility, each component has been carefully selected to ensure minimal ecological impact throughout its lifecycle. The housing is manufactured from European oak, 100% post-industrial recycled polycarbonate gear enclosure, super efficient driver, gear tray made from 90% recycled aluminium components and highly efficient PMMA lenses. Acorn is also Darksky approved due to its zero upward light and 2700K colour temperature. In combination with the SmartScan External control system the impact on its immediate environment once installed can also be kept to the absolute minimum.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 9 W 1900 lm 159 lm/W 4000 K 70
Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

Emisión de luz 1

1 x LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Longitud: 197 mm

Anchura: 287 mm

Altura ajustable: 75 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 11 W

Protección

IP: 65

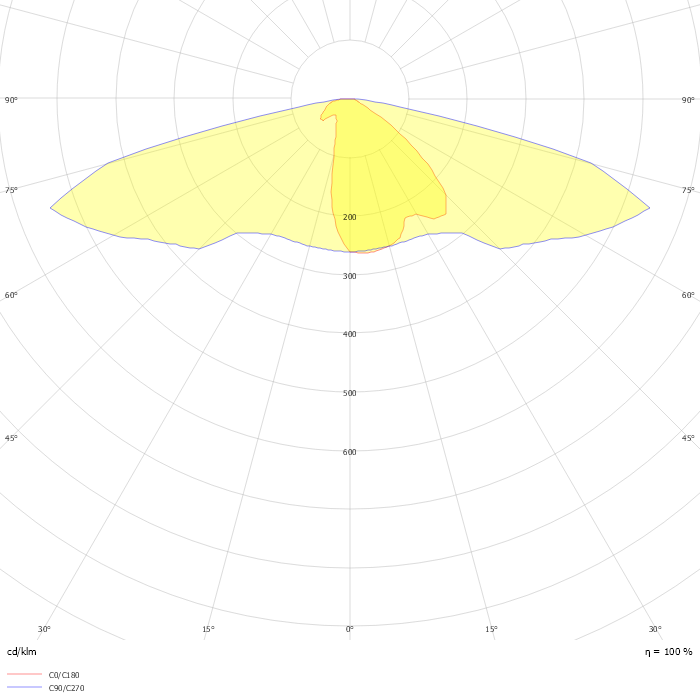

Dato fotométrico

ZIP file
