Product data sheet

Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

AC09HR54

Thorlux Lighting

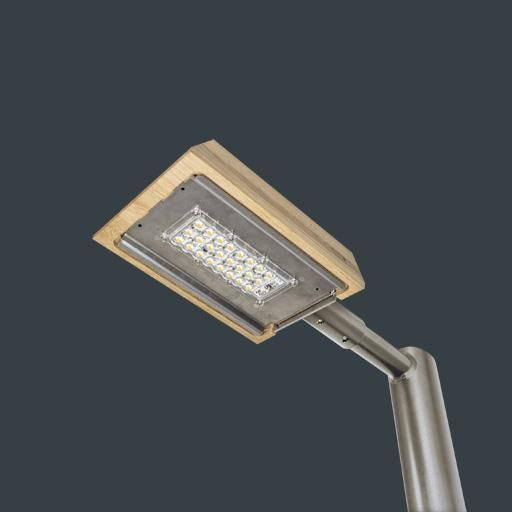

Product image 1: Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting
Product image 1: Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

Product image 1: Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting



IP
65

Acorn has been engineered to redefine the benchmarks of sustainability. Crafted with a commitment to environmental responsibility, each component has been carefully selected to ensure minimal ecological impact throughout its lifecycle. The housing is manufactured from European oak, 100% post-industrial recycled polycarbonate gear enclosure, super efficient driver, gear tray made from 90% recycled aluminium components and highly efficient PMMA lenses. Acorn is also Darksky approved due[more]

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 9 W 1900 lm 173 lm/W 4000 K 70
Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

Acorn - Roadway Distribution - 9W - 4000K - Horizontal Mounting

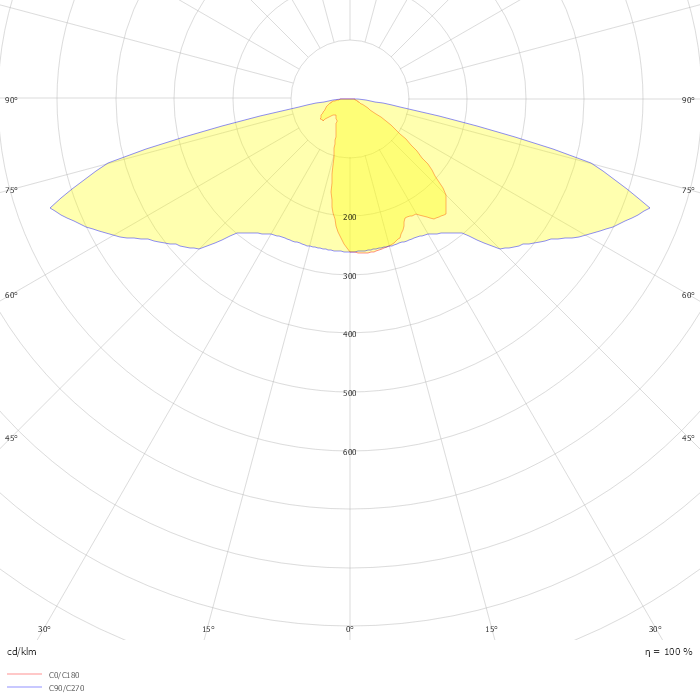

Light output 1

1 x LED

LOR:100%
Total flux:1900 lm
Total power:11 W

Mounting mode

Pole top mounted

Shape and measurements

Length: 197 mm

Width: 287 mm

Height: 75 mm

Adjustability

Fixed

Electric

System power: 11 W

Protection

IP: 65
