Hoja de dato de productos

FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)

FT2SE150ATT13

Eaton Emergency Lighting

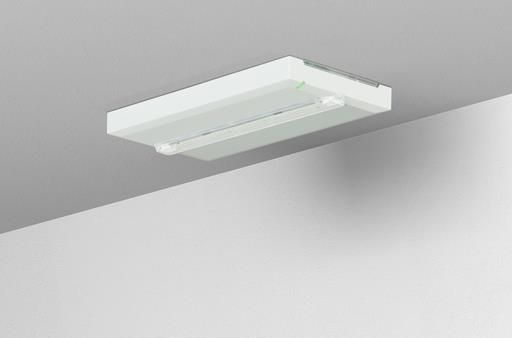

Imagen de productos 1: FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)
Imagen de productos 1: FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)

Imagen de productos 1: FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)



IP
43

IK
07

• LED self-contained luminaire with Automatic Test (AT) for reduced inspection effort • Safety luminaire, light distribution optimized for escape route application • Non obstrusive design and slim housing (31.2 mm) • Good lighting performance and spacing in a compact housing • Possibility to modify the light distribution by changing the optical lens (option) • Same aesthetic in IP43 and IP65 versions • Selectable operating time (1/1,5/2/3h operation) • Selectable operation mode (M or NM) via jumper • Large working space, cable entries in flexible material and spirit level for easy and fast installation • Transparent base plate with honeycomb footprint for easy replacement of existing products (IP4x use only) • Low eco footprint thanks to eco designed luminaire, low consumption and Lithium battery • Simple fault analysis and status display via bicolor LED • Complete range of accessories (Recess Kit for Ceiling, Recessed Box for plaster and brick wall, Wire Guard) • Other colours available on demand

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 2 W 100 lm 50 lm/W 6500 K 80
FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)

FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)

Emisión de luz 1 (integrada)

LED

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 2 W 150 lm 75 lm/W 6500 K 80
FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)

FT Escape 150lm AT MNM Tel, 1-3H (set to 1 h operation)

Emisión de luz 2 (integrada, emergencia)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 230 mm

Anchura: 120 mm

Altura ajustable: 20 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 4 W

Clases de aislamiento: II

Información sobre funciones emergentes

Iluminación de emergencia suplementaria

Suministro eléctrico de emergencia: Batería sola de 1 h, Batería sola de 1,5 h, Batería sola de 2 h, Batería sola de 3 h

Señal de emergencia: N/A

Protección

IP: 43

IK: 07

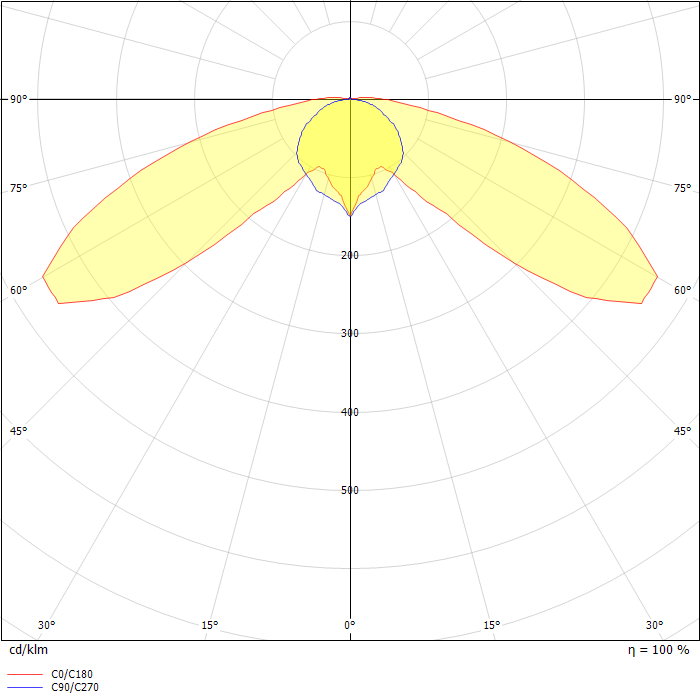

Dato fotométrico

ZIP file
