Product data sheet

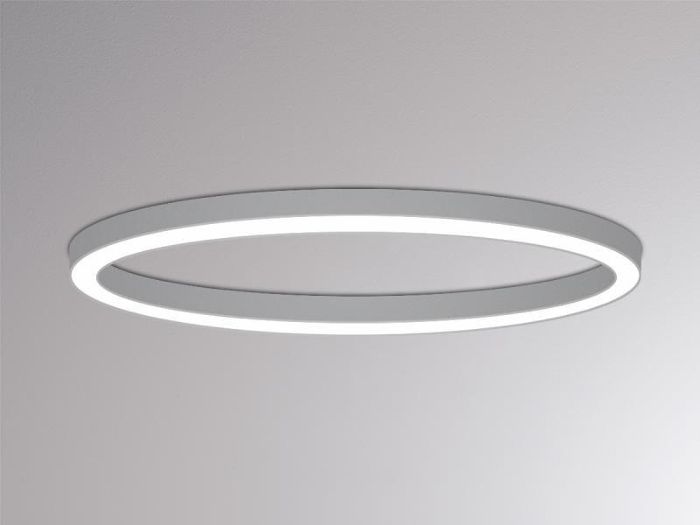

RINQ SD 1500 WAND-DECKEN AUFBAULEUCHTE 66W 3000K silber PMMA OPAL
445-9115019180v1
MOLTO LUCE
RINQ WAND-DECKEN AUFBAULEUCHTE aus Aluminium, silber, ähnlich RAL 9006,satinierter PMMA Opaldiffuser Lichtaustritt direkt, mit Betriebsgerät, IP20
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)
- Light output 5 (integrated)
- Light output 6 (integrated)
- Light output 7 (integrated)
- Light output 8 (integrated)
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 8 W | 688 lm | 86 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1500 mm
Width: 1500 mm
Height: 100 mm
Adjustability
Fixed
Design
Colour of housing: Silver gray
Electric
System power: 64 W
Appliance Class: I
Protection
IP: 20
IK: 02

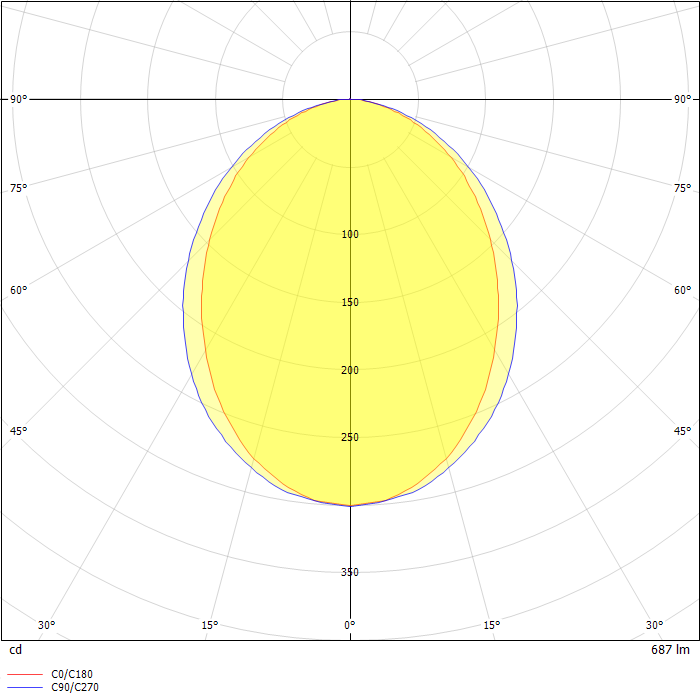

Photometric data
ZIP file
