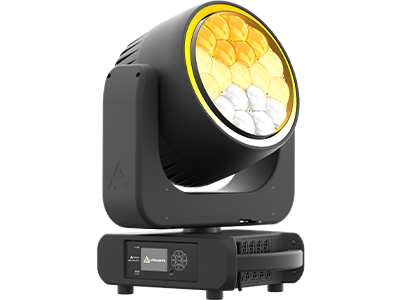

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM. Features: Silent operation, smooth and fast movements Zoom from 4° to 54° with high optical efficiency Pixel and ring control, precise white CCT, multiple FX and colour features
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 195.5 W | 1729 lm | 9 lm/W | 0 K | -29 |
Mounting mode
Ceiling mounted, Standing / Bollard

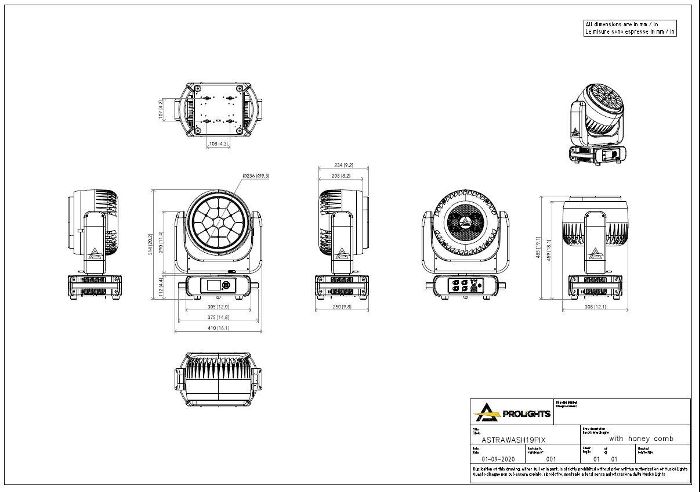

Shape and measurements
Length: 14.76 in
Width: 9.84 in
Height: 4.78 in
Adjustability
Rotatable, Free
Electric
System power: 620 W
Controller: DMX
Color adjustable
Appliance Class: I
Protection
IP: 20
IK: 08
Surface temperature: 50°C
Designation labels: CE

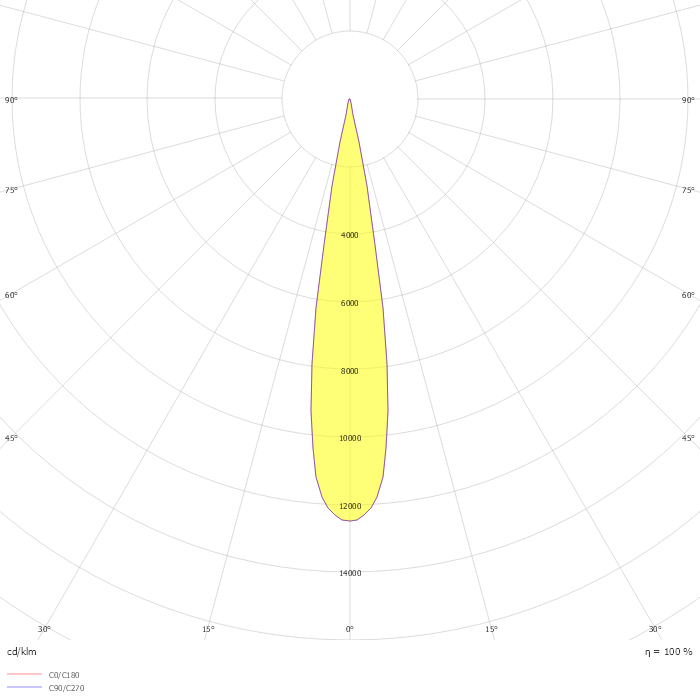

Photometric data
ZIP file
Datasheet
PDF file
