Series: FLAT BASIC Decorative round surface-mounted luminaire. Base: plastic. Mouth blown 3-layer opal glass (Triplex glass) with satin finish. Diffuser fastening: spring system. Triplex glass produces particularly homogeneous, soft and glare free lighting. Suitable for Ceiling mounting, Wall (surface). Colour: pure white (RAL 9010) Diameter D: 370 mm Height H: 118 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI):80 System power 1: 11 W Rated luminous flux 1: 1250 lm Colour temperature 1: 4000 K Luminous efficiency: 114 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 43
Tipo di lampada | Potenza nominale | Flusso totale | Emissione luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 11 W | 1250 lm | 114 lm/W | 4000 K | 80 |
Tipo di montaggio
Montaggio a soffitto
Forma e Dimensioni
Altezza: 118 mm
Diametro: 370 mm
Regolazione
Fisso
Corpo: colore / materiale
Colore del corpo: Bianco
Cablaggio / Dimming
Potenza sistema: 11 W
Grado di protezione
IP: 43
IK: 02

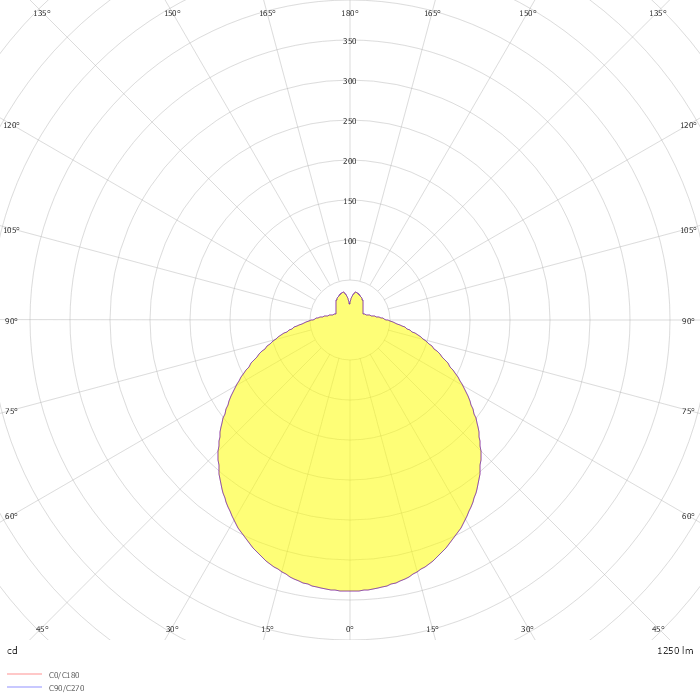

Photometric data
ZIP file
