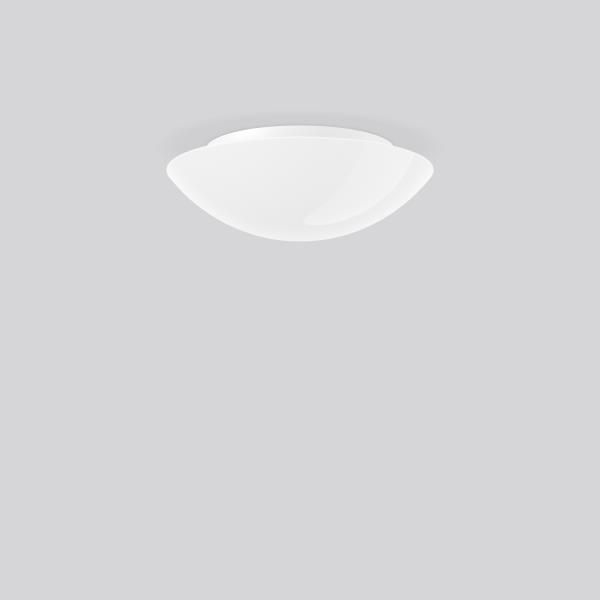

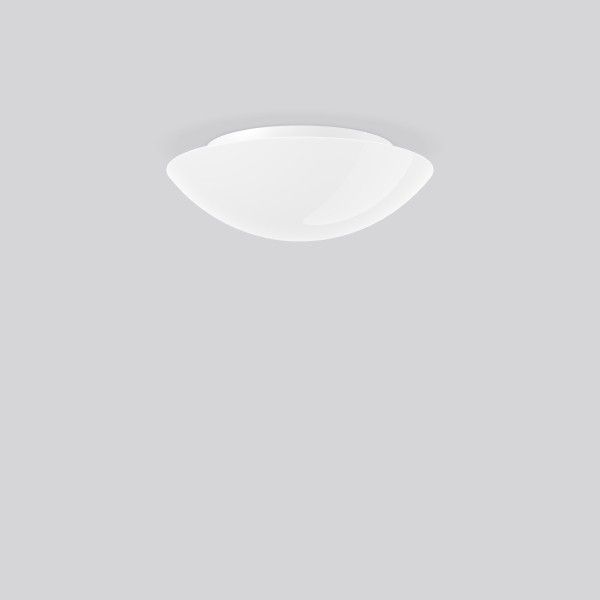

Series: FLAT BASIC Decorative round surface-mounted luminaire for indoor and outdoor use. Base: plastic. Mouth blown 3-layer opal glass (Triplex glass) with satin finish. Diffuser fastening: spring system. Suitable for Ceiling mounting, Wall (surface). IP 43 ceiling mounting, IP 44 wall mounting. Colour: pure white (RAL 9010) Diameter: 370 mm Height: 118 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 11 W Rated luminous flux: 1250 lm Beam angle Down: 117° Luminous efficiency: 114 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 43
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 11 W | 1250 lm | 114 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 4.65 in
Diameter: 14.57 in
Adjustability
Fixed
Design
Color of housing: White
Electric
System power: 11 W
Protection
IP: 43
IK: 02

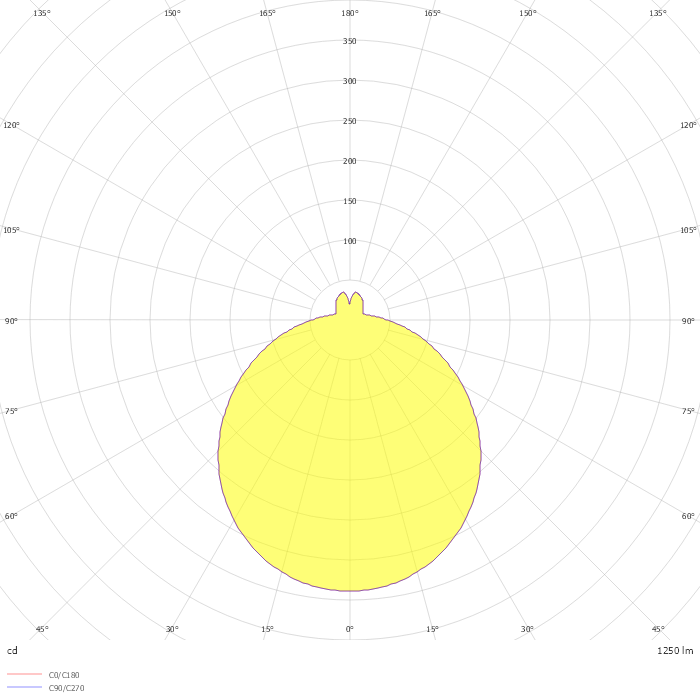

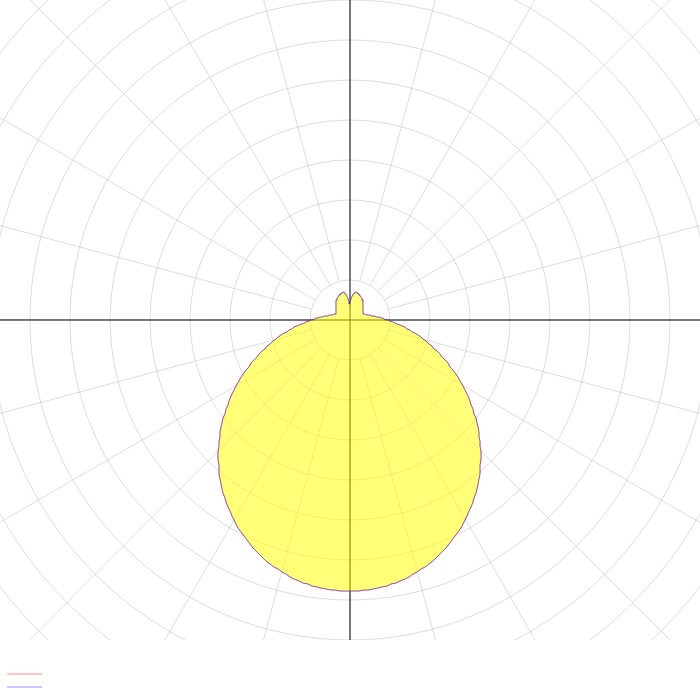

Photometric data
ZIP file
