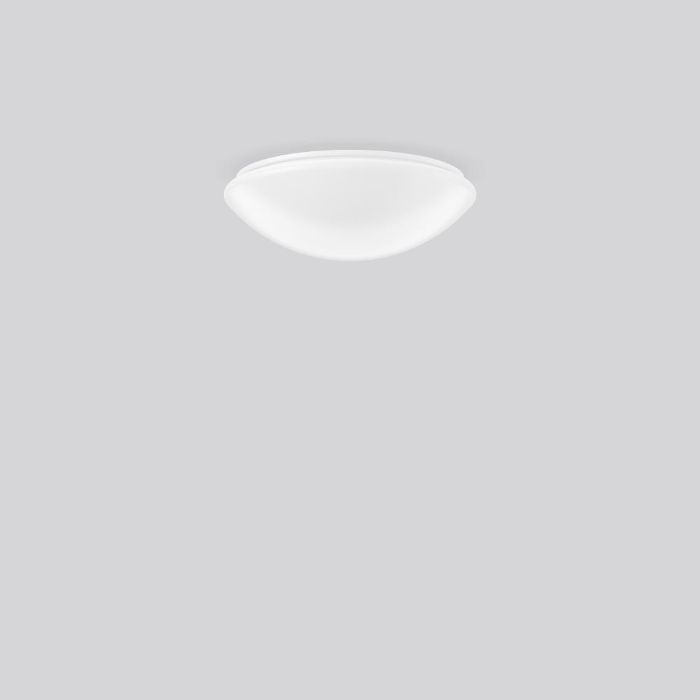

Series: FLAT POLYMERO Decorative round surface-mounted luminaire. Base: metal, powder-coated. Diffuser made of plastic (polycarbonate), opal, shockproof. Diffuser fastening: patented push system.Suitable for Ceiling mounting, Wall (surface). With integrated HF movement sensor. HF detector 5.8 GHz ISM frequency band. Sensitivity/Range: 1-8 m in diameter, adjustable from 20-100%. Time control 1 second to 15 minutes in 8 different levels. Coverage: 120°. Can be used as master luminaire up to 800 W (ohmic load), 500 W (fluorescent lamp, LED) / 400 A, 200 µs. Suitable for outdoor use to a limited extent only, as it is sensitive to all movements. Colour: white Diameter D: 300 mm Height H: 100 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI):80 System power 1: 14 W Rated luminous flux 1: 1500 lm Colour temperature 1: 3000 K Luminous efficiency: 107 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 40
Tipo di lampada | Potenza nominale | Flusso totale | Emissione luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 14 W | 1500 lm | 107 lm/W | 3000 K | 80 |
Tipo di montaggio
Montaggio a soffitto
Forma e Dimensioni
Altezza: 100 mm
Diametro: 300 mm
Regolazione
Fisso
Cablaggio / Dimming
Potenza sistema: 14 W
Grado di protezione
IP: 40
IK: 10
Photometric data
ZIP file
