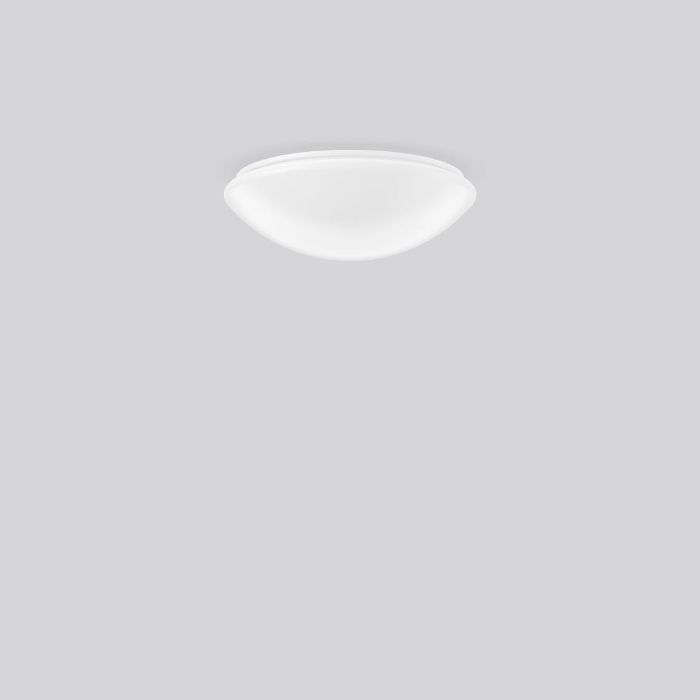

Series: FLAT POLYMERO Decorative round surface-mounted luminaire. Base: metal, powder-coated. Diffuser made of plastic (polycarbonate), opal, shockproof. Diffuser fastening: patented push system. Suitable for Ceiling mounting, Wall (surface). With integrated HF movement sensor. Functional parameters of the motion detector (ceiling mounting up to 4.0 m or wall mounting up to 2.7 m): HF detector 5.8 GHz ISM frequency band. Sensitivity/Range: 1-8 m in diameter, adjustable from 20-100%. Time control between 10 seconds and 30 minutes, adjustable. Coverage: 120°. Can be used as master luminaire up to 800 W (ohmic load), 500 W (fluorescent lamp, LED) / 400 A, 200 µs. Suitable for outdoor use to a limited extent only, as it is sensitive to all movements. Colour: white Diameter: 300 mm Height: 100 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 80 System power: 14 W Rated luminous flux: 1500 lm Luminous efficiency: 107 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 40
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 14 W | 1500 lm | 107 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 100 mm
Diameter: 300 mm
Adjustability
Fixed
Electric
System power: 14 W
Protection
IP: 40
IK: 10

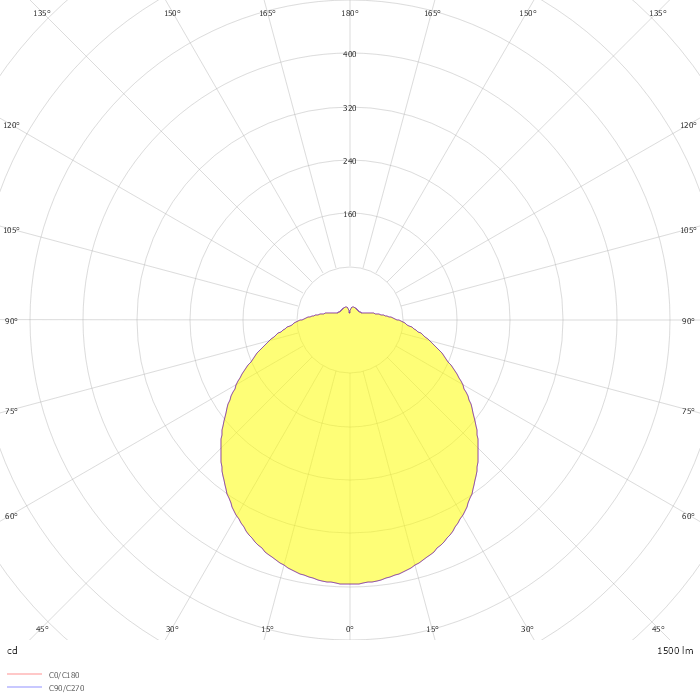

Photometric data
ZIP file
