Hoja de dato de productos

544 KONIC LED pole-top light fitting

544 1601ABX DIMD (54400 0016)

Schuch

"LED pole-top light fitting, KONIC, 17 W, 2570 lm, 151 lm/W, Class II, IP65, asymmetrical extremely wide beam, 4000 K, CRI≥ 70, Ta -40 °C/+50 °C, L90>100000 h (@ Ta max), DALI (DIMD), Diffuser PMMA satined, Closure Stainless steel V2A, Housing Die-cast aluminium, Colour grey, DB702N. LED pole-top light fitting KONIC, consisting of powder-coated die-cast aluminium housing, three-part. Lower part with cable entry, ECG, isolating plug connection and strain relief. Upper part with LED modules, optics and frosted PMMA cover. Braces with cable feed-through. Zhaga LED modules with highly efficient optics, direct beam, Multi-Layer Technology. ECG with high surge protection, overload and short circuit protection. Mounting on straight poles Ø 76mm (see ""Optional accessories"" for poles Ø 60mm). Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting)., Width/Diameter 500,00 mm, Height 660,00 mm, Net weight 9,60 kg."

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 17 W 2570 lm 151 lm/W 4000 K 70
544 KONIC LED pole-top light fitting

544 KONIC LED pole-top light fitting

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Altura ajustable: 660 mm

Diámetro: 500 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 17 W

Clases de aislamiento: I

Protección

IP: 65

IK: 06

Certificados: CE

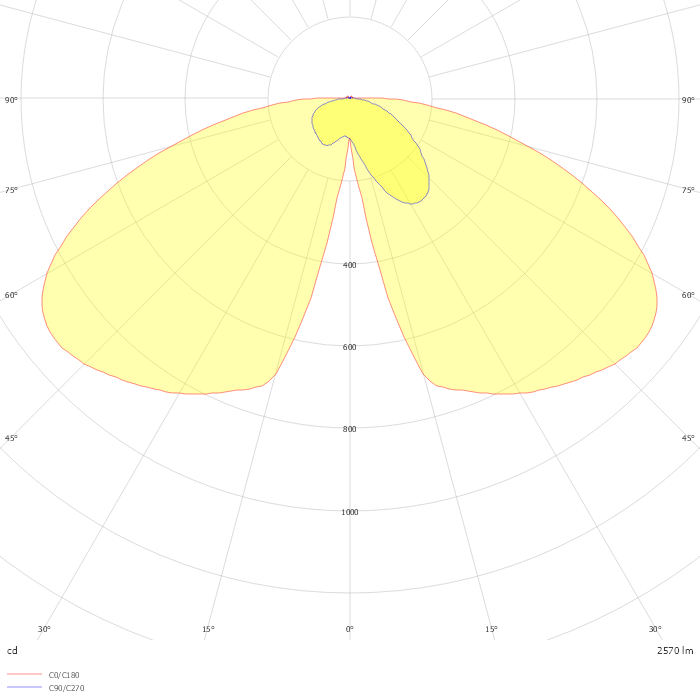

Dato fotométrico

ZIP file
