Hoja de dato de productos

ORDI II WL

1008721

SLV

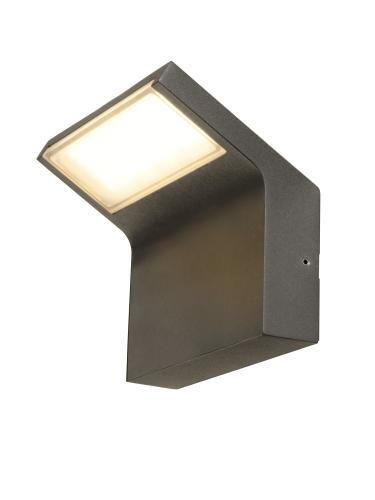

The ORDI II wall-mounted light is an extension to the successful ORDI family and sets new standards in design and technology. With an optimised design, it offers improved technical specifications such as an IP65 protection rating, a sea-air resistant coating, and a robust IK07 classification. These properties make the light ideal for outdoor use, even under extreme conditions such as rain, wind, or salty air. Thanks to the CCT switch, the colour temperature can be flexibly adjusted. The insect-friendly 2,200 K is less attractive to insects due to its lower proportion of blue, while 3,000 K is suitable for functional lighting. The light has an impressive service life of 50,000 hours and is available in black and white. The dimmable versions of the ORDI II wall-mounted light allow the flexible adjustment of the light intensity, for a customised lighting concept.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 9,5 W 733 lm 67 lm/W 2200 K 83
1 x LED 9,5 W 733 lm 67 lm/W 3114 K 83
ORDI II WL

ORDI II WL

Emisión de luz 1

1 x LED

ORDI II WL

ORDI II WL

Emisión de luz 1

1 x LED

Tipo de Montaje

Montaje en pared

Forma y medidas

Longitud: 110 mm

Anchura: 100 mm

Altura ajustable: 165 mm

Peso: 0,37 kg

Ajustabilidad

Fijo

Eléctrico

Potencia: 9,5 W

Clases de aislamiento: I

Protección

IP: 65

IK: 07

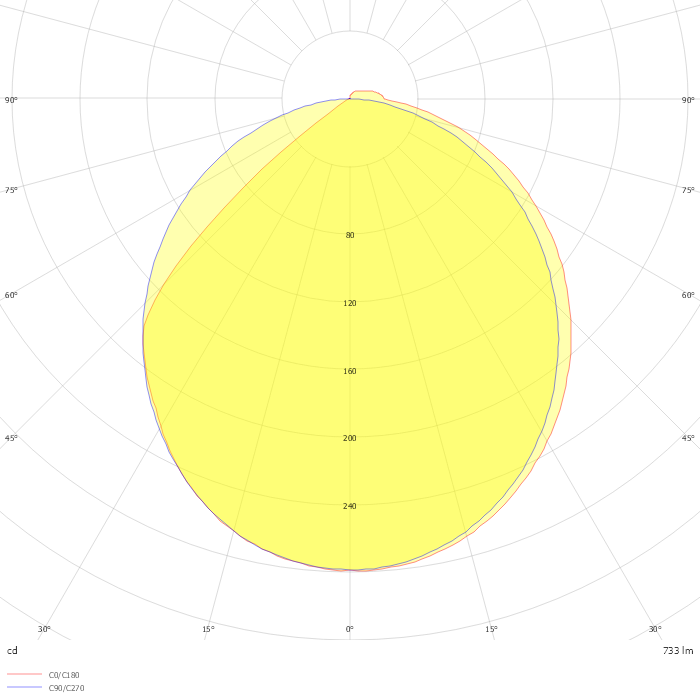

Dato fotométrico

ZIP file
