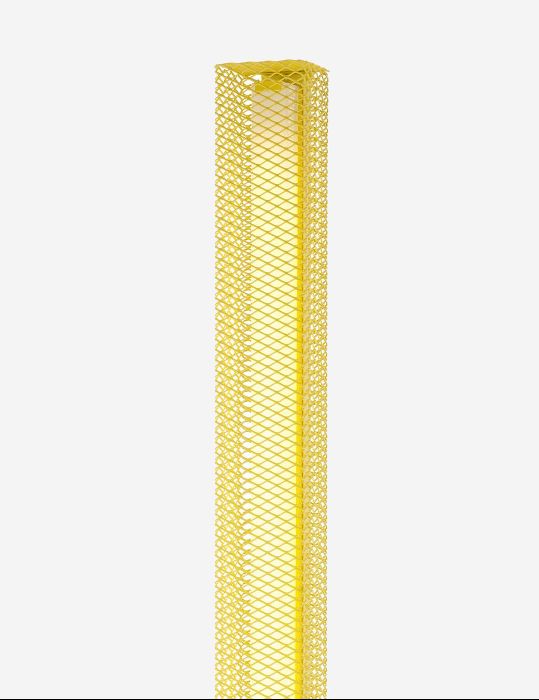

The Grid series is decorated with industry standard sheet metal with different hole formations. Three patterns, two different perforations in the standard colours clear lacquered metal and transparent gold." Finish: Perforated metal with square holes or expanded metal. Yellow, orange, clear painted metal or transparent gold varnish. Grid has a raw finish and one can see weldings through the transparent varnish. Diffuser in opal acrylic. LED info: System power: see above. Luminaire Luminous Flux: see above. CCT 3000K. SDCM 3. Installation: On wall. Connection: Terminal block 3x4mm2. Design: Front 2012.
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 33 W | 1966 lm | 60 lm/W | 3000 K | 80 |
Tipo de Montaje
Montaje en pared
Forma y medidas
Longitud: 96 mm
Anchura: 97 mm
Altura ajustable: 1252 mm
Ajustabilidad
Fijo
Eléctrico
Potencia: 33 W
Control: DALI
Adecuado para cableado de línea de paso
Clases de aislamiento: I
Protección
IP: 20
Certificados: CE

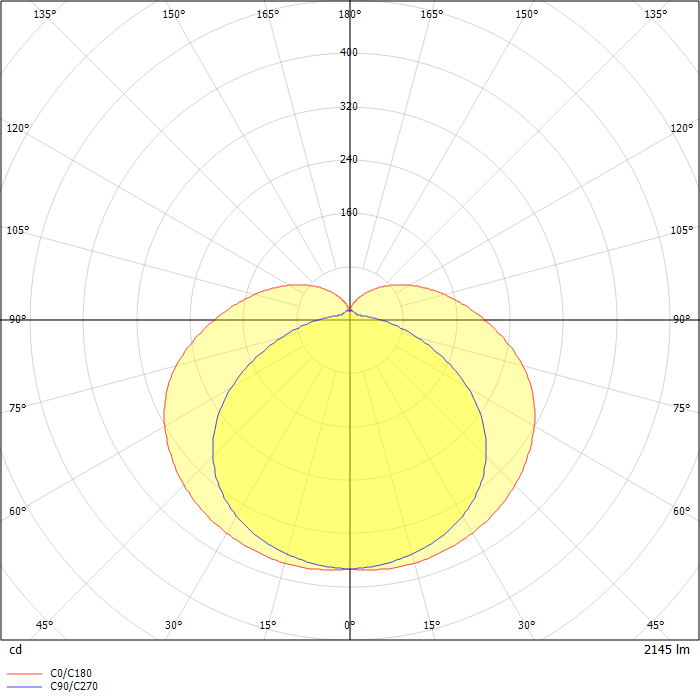

Dato fotométrico
ZIP file
