Hoja de dato de productos
Lotis 86 IP55 for LED 4000K medium GE alu struc
13090028+14061005
Modular
Modular's holy lighting grail Lotis is the recessed spotlight which started it all. The hallmark of this luminaire, is the deeply recessed cone which holds the light source and has a fine edge. The complete Lotis range comes in an upgraded Lotis for LED version, using our M-LED 50 module. This allows you to choose from a large range of lighting colours (2700-4000K) and three different beam angles (spot, medium or flood).
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 6,2 W | 590 lm | 75 lm/W | 4000 K | 90 |
| 1 x LED | 9,2 W | 792 lm | 68 lm/W | 4000 K | 90 |
Tipo de Montaje
Empotrado en techo
Forma y medidas
Longitud: 86 mm
Anchura: 86 mm
Altura ajustable: 48 mm
Peso: 0,16 kg
Ajustabilidad
Fijo
Eléctrico
Potencia: 6,2-9,2 W
Protección
IP: 55

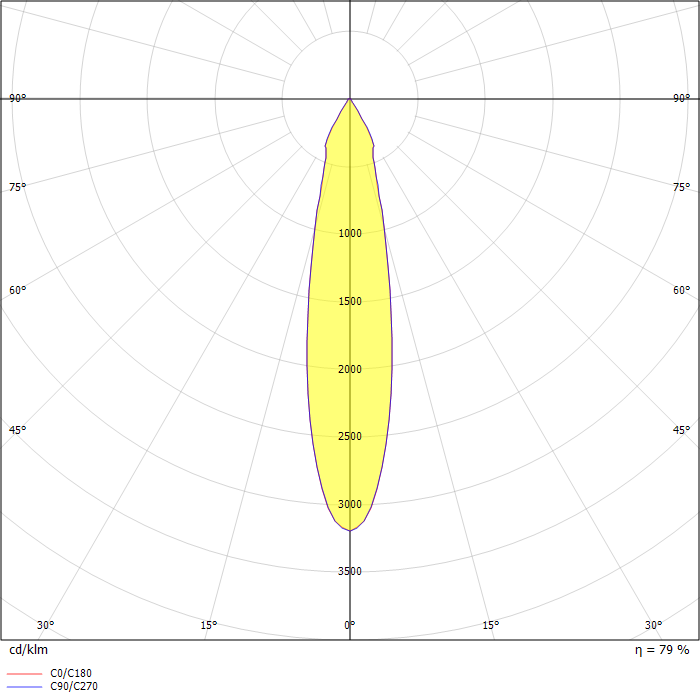

Dato fotométrico
ZIP file
