Hoja de dato de productos

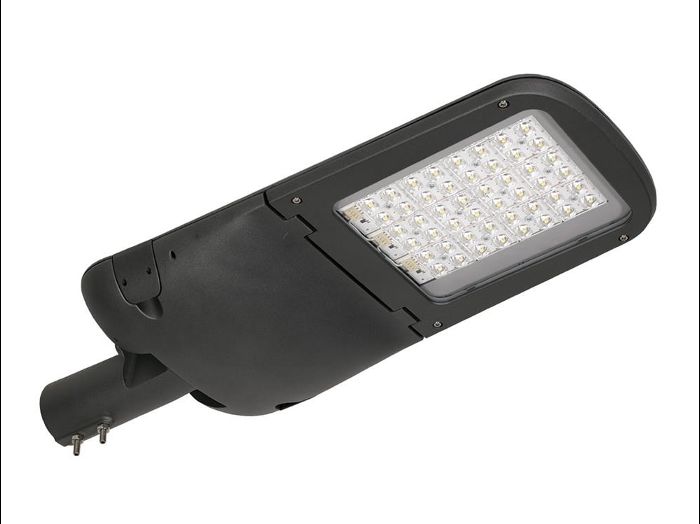

EVELUX S 24/310/730 TE

104860

TREVOS

light fitting resistant to dust, humidity and spraying water, suitable for roads, residential areas, parking areas and open spaces; light fitting suitable for lighting outdoor sports halls, certified for ball impact safety pursuant to DIN 18032-3; wide range of optional versions of the light fitting's optical system for diverse applications; ON/OFF electronic driver (AC, DC on demand); Body: aluminium alloy, black grey (RAL 7021); Diffuser: heat-strengthened safety glass; Connection:[más]

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 23,9 W 4010 lm 168 lm/W 3000 K 80
EVELUX S 24/310/730 TE

EVELUX S 24/310/730 TE

Emisión de luz 1 (integrada)

LED

LOR:100 %
ULOR:4 %
Potencia total:23,9 W

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Longitud: 630 mm

Anchura: 265 mm

Altura ajustable: 95 mm

Ajustabilidad

Fijo

Diseño

Impresión de Material: Aluminio

Color de carcasa: Antracita / Grafito

Diseñador(a): TREVOS

Eléctrico

Potencia: 23,9 W

Balastos: ECG

Clases de aislamiento: I

Protección

IP: 66

IK: 10

Certificados: CE, ENEC

Otros números operativos

Intervalo de temperatura ambiente: -40...45 °C
