Hoja de dato de productos

TONIC SPOT LED1800-940 MT3 SP BK

96665974

Thorn Lighting

An LED spotlight with spot distribution and integral fixed output control gear, for 100-240V, 50/60Hz supply. Track mounted (or surface mounted using adaptor accessory) via global GA69 3-phase adaptor. Class I electrical, IP20. Body: die-cast aluminium, painted black. Driver box: black polycarbonate. Complete with 4000K LED. Spotlight can be rotated through 350° and tilted up to 90°. Light distribution can be altered by changing the lens and / or using external attachments. Dimensions: Ø95 x 187 mm Total power: 19.3 W Luminaire luminous flux: 1772 lm Luminaire efficacy: 92 lm/W Weight: 1.3 kg

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 19,3 W 1772 lm 92 lm/W 3000 K 90
TONIC SPOT LED1800-940 MT3 SP BK

TONIC SPOT LED1800-940 MT3 SP BK

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Altura ajustable: 187 mm

Diámetro: 95 mm

Peso: 1,3 kg

Diseño

Impresión de Material: Aluminio

Color de carcasa: Negro

Eléctrico

Potencia: 19,3 W

Voltaje: 100-240 V AC

Clases de aislamiento: I

Protección

IP: 20

Certificados: CE

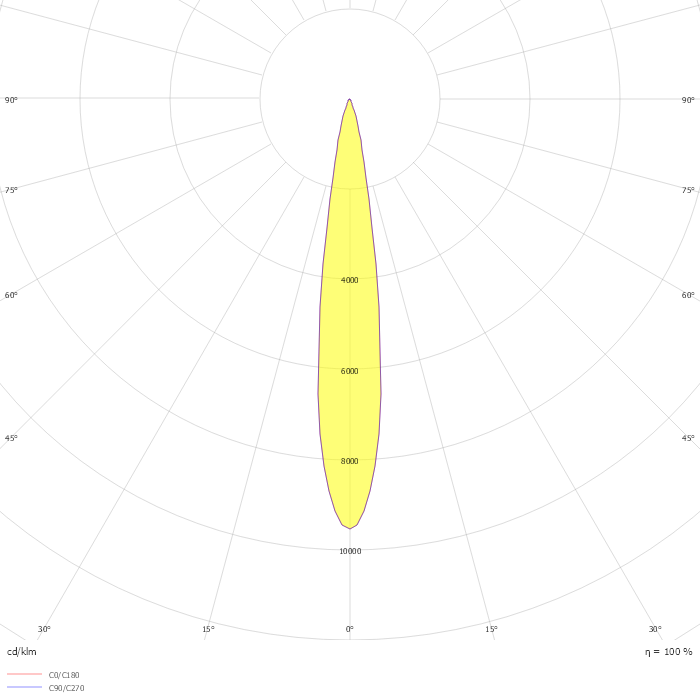

Dato fotométrico

ZIP file
