Hoja de dato de productos

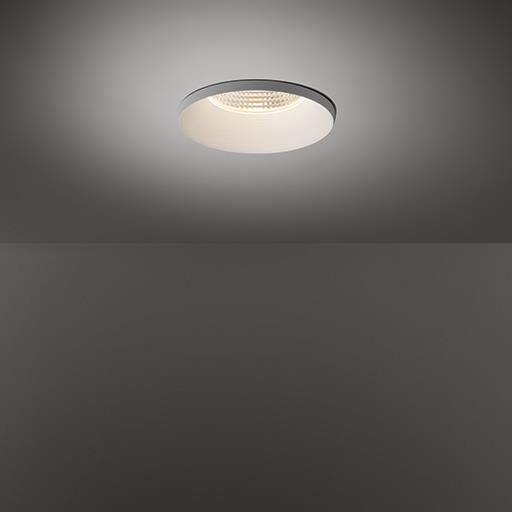

Smart kup 160 IP55 LED GE 4000K wide flood black struc
13026232
Modular
Subtle lighting Smart kup is one of the 3 forms of the Smart family. The cone of the Smart kup ends in a fine trim. A trim particular Modular. The same subtle trim is used in several other Modular luminaires. The Smart family’s styling is based on our most popular designs. Concretely this means that the luminaires consist of a light source (LED or halogen) which can be combined with one of three trims to suit your needs. The new spotlights can be combined with Smart mask, Smart… [más]
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 36,3 W | 4427 lm | 110 lm/W | 4000 K | 90 |
| 1 x LED | 49,7 W | 5725 lm | 104 lm/W | 4000 K | 90 |
| 1 x LED | 16 W | 2265 lm | 127 lm/W | 4000 K | 90 |
| 1 x LED | 23,5 W | 3084 lm | 118 lm/W | 4000 K | 90 |
| 1 x LED | 30,8 W | 3828 lm | 112 lm/W | 4000 K | 90 |
| 1 x LED | 42 W | 4972 lm | 106 lm/W | 4000 K | 90 |
| LOR: | 90 % |
| Flujo total: | 3982 lm |
| Potencia total: | 36,3 W |
Tipo de Montaje
Empotrado en techo
Forma y medidas
Longitud: 160 mm
Anchura: 160 mm
Altura ajustable: 129 mm
Peso: 0,91 kg
Ajustabilidad
Fijo
Eléctrico
Potencia: 16-49,7 W
Clases de aislamiento: II
Protección
IP: 55
