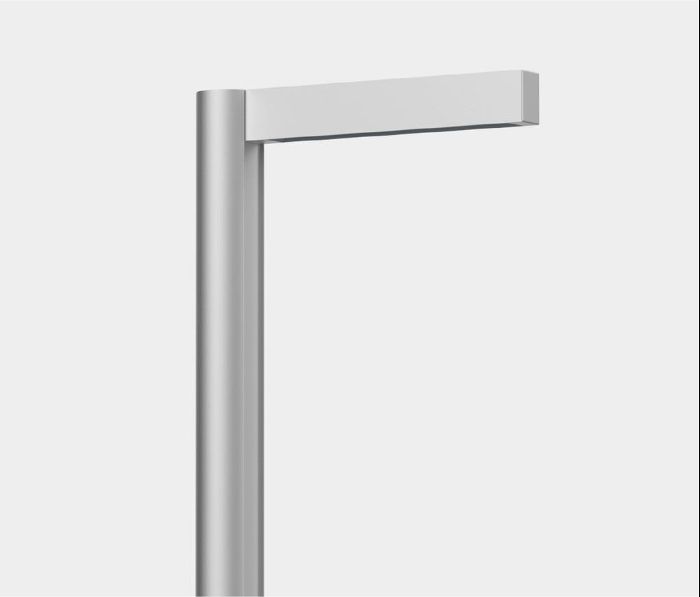

Lighting set made of aluminium. The standard version is anodised in inox and grey. Designed to illuminate city roads and residential streets, office buildings’ surroundings, parks and pedestrian routes. It has a protection class of IP 66 for the optical part and the power input system. The set is equipped with PMMA lenses and an interchangeable LED module. The expected service life of the product is L90B10 - 100,000 h. The input voltage frequency is 50/60Hz. Power factor ≥0.95. The set, depending on the power variant, has: 12 LEDs (for 24 W, 36 W), 24 LEDs (for 48 W, 60 W, 72 W). It is possible to connect the set to an external control system via the DALI interface (optional support for an analogue 1-10V signal).
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 55 W | 8150 lm | 148 lm/W | 2700 K | 70 |
Tipo de Montaje
Mástil integrado
Forma y medidas
Longitud: 760 mm
Anchura: 90 mm
Altura ajustable: 90 mm
Ajustabilidad
Altura ajustable
Eléctrico
Potencia: 55 W
Protección
IP: 66

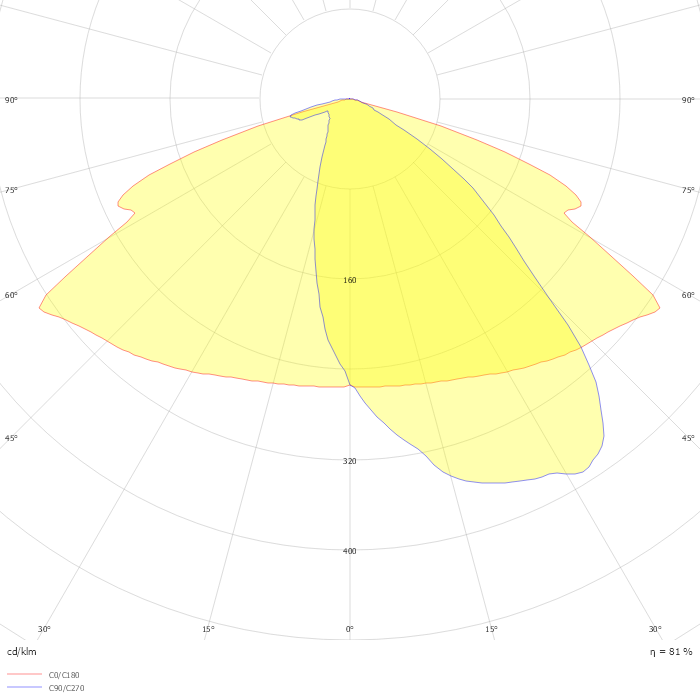

Dato fotométrico
ZIP file
