Hoja de dato de productos

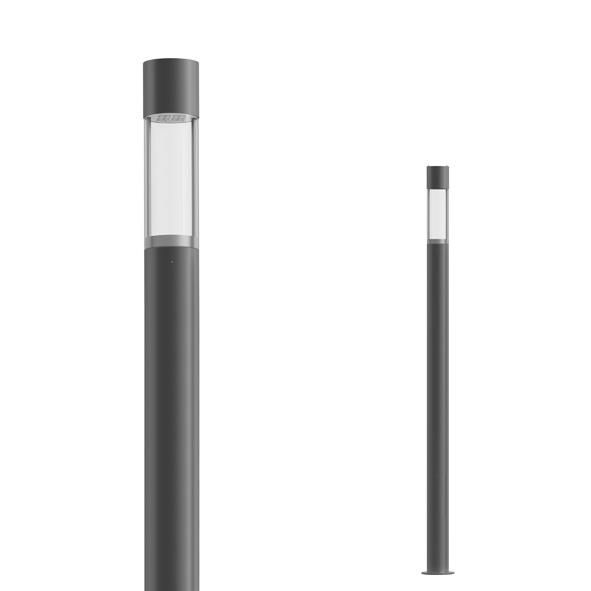

STELLA L IV/07 FLS LED (oval wide beam)

9.628.9371.657ALA

Leipziger Leuchten

• luminaire head with cap made of aluminium; powder coated; straight tubular column made of aluminium with access door for cable junction box; powder coated • glazing made of PMMA RESIST, clear, high-impact resistant • completely wired; incl. cable until access door • with flange plate to be screwed on a concrete foundation on site or on an additional bolt-on root or with root to be set into the ground • to be ordered separately: cable junction box, column accessories, bolt-on root (G300/1000) with screws, accessory ring (Z305/2), antiglare foil, bird deflector

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 12,5 W 1255 lm 100 lm/W 3000 K 75
STELLA L IV/07 FLS LED (oval wide beam)

STELLA L IV/07 FLS LED (oval wide beam)

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Bolardos

Forma y medidas

Altura ajustable: 3700 mm

Diámetro: 200 mm

Peso: 37,5 kg

Ajustabilidad

Fijo

Eléctrico

Potencia: 12,5 W

Protección

IP: 65

Dato fotométrico

ZIP file
