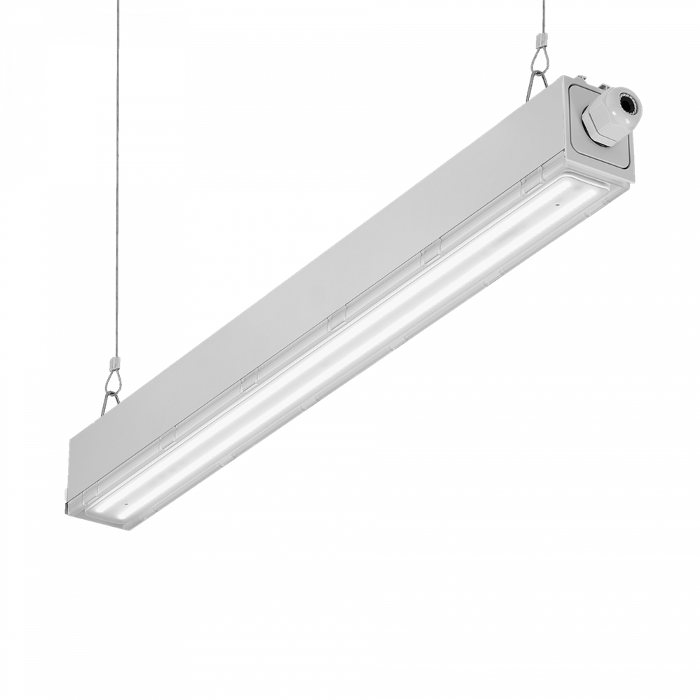

INDUSTRY SLIM LED 590mm 7550lm 850 IP66 120D LS2 (47W) Industry Slim Led - a sealed, aluminum luminaire of compact dimensions. A completely new industrial luminaire. Extremely short (590 mm), the luminaire has a high luminous flux and a very high luminous efficiency, which makes this luminaire highly energy-saving and ecological. It is distinguished by a very high IP66 tightness. It owes this tightness to its well-thought-out design. The polycarbonate diffuser is permanently attached to the housing with a durable silicone gasket. This means that in addition to the tightness obtained in this way, the light module is protected against uncontrolled interference and access to the LEDs. The tightness of the lamp is ensured by a gland, which tightens the gasket and prevents the ingress of dust, moisture, and water. Industry Slim Led allows for suspended or surface mounting. The luminaire is designed to illuminate industrial and warehouse facilities, due to its minimal dimensions, also in hard-to-reach places. The Industry Slim Led luminaire is available in various versions: with different optics, wide, narrow, and dedicated to high-bay light distribution, and five types of the diffuser, including an anti-glare diffuser.
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 47 W | 7550 lm | 161 lm/W | 5000 K | 80 |
Tipo de Montaje
Pendular, Montaje en techo
Forma y medidas
Longitud: 590 mm
Anchura: 50 mm
Altura ajustable: 65 mm
Ajustabilidad
Fijo
Diseño
Impresión de Material: Mate
Color de carcasa: Blanco
Eléctrico
Potencia: 47 W
Balastos: ECG
Adecuado para cableado de línea de paso
Clases de aislamiento: I
Protección
IP: 66
IK: 09
Certificados: CE
Otros números operativos
Intervalo de temperatura ambiente: -25...35 °C

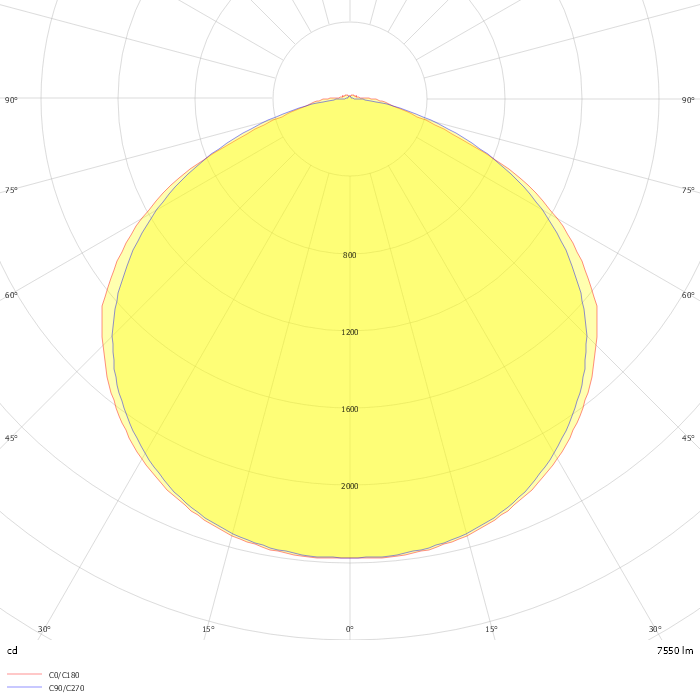

Dato fotométrico
ZIP file
