Hoja de dato de productos

PANEL VALUE 1200x600 TPB 65 W 4000 K WT

4058075384361

LEDVANCE

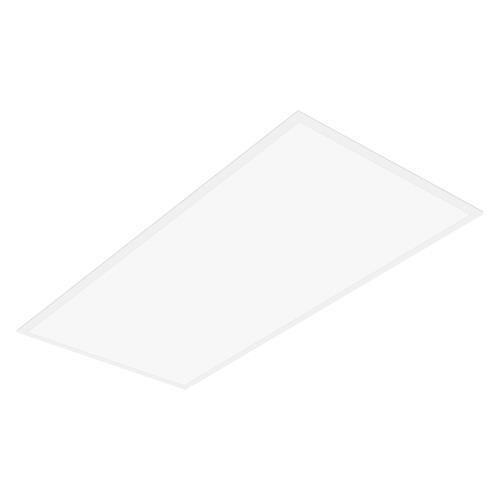

Rectangular recessed panel luminaires with TP(B) rated diffuser, 1200 x 600 mm. Product features: Lifetime (L70/B50): 50,000 h (at 25 °C). Extruded aluminum frame. Polystyrene diffuser (TP(B) rated). Product benefits: Value for money luminaire. 3 years guarantee. Low flicker light thanks to special electronic control gear. External driver for extended flexibility and easy installation. Emergency lighting possible with LEDVANCE Emergency Conversion Box. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, foyers, corridors, elevators. Suitable for recessed ceiling systems with grid size of 1200 x 600 mm. Equipment / Accessories: Accessories for several mounting options available. External control gear included.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 6500 W 5850 lm 1 lm/W 4000 K 80
PANEL VALUE 1200x600 TPB 65 W 4000 K WT

PANEL VALUE 1200x600 TPB 65 W 4000 K WT

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo, Pendular

Forma y medidas

Longitud: 119500 mm

Anchura: 59500 mm

Altura ajustable: 3400 mm

Peso: 3600 kg

Ajustabilidad

Fijo

Diseño

Impresión de Material: Aluminio

Color de carcasa: Blanco

Eléctrico

Potencia: 6500 W

Clases de aislamiento: II

Protección

IP: 40

IK: 02

Certificados: CE

Otros números operativos

Intervalo de temperatura ambiente: -10...45 °C

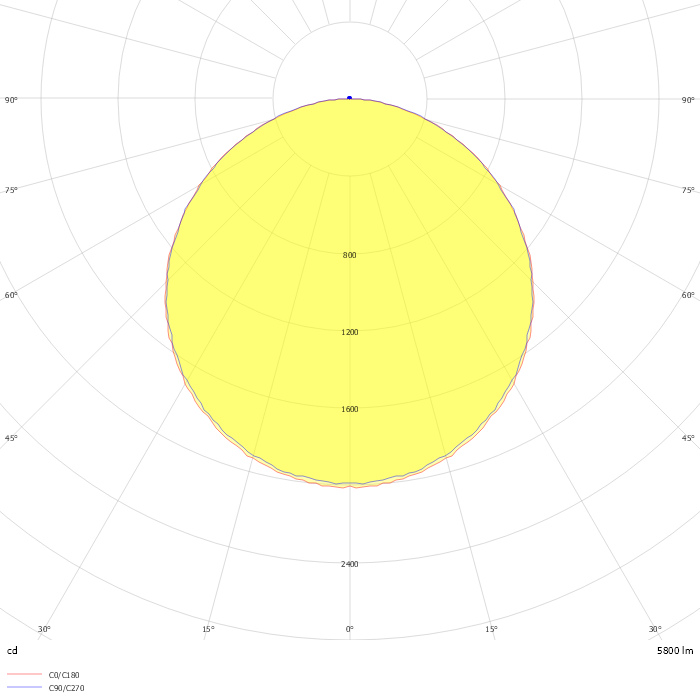

Dato fotométrico

ZIP file
