Hoja de dato de productos

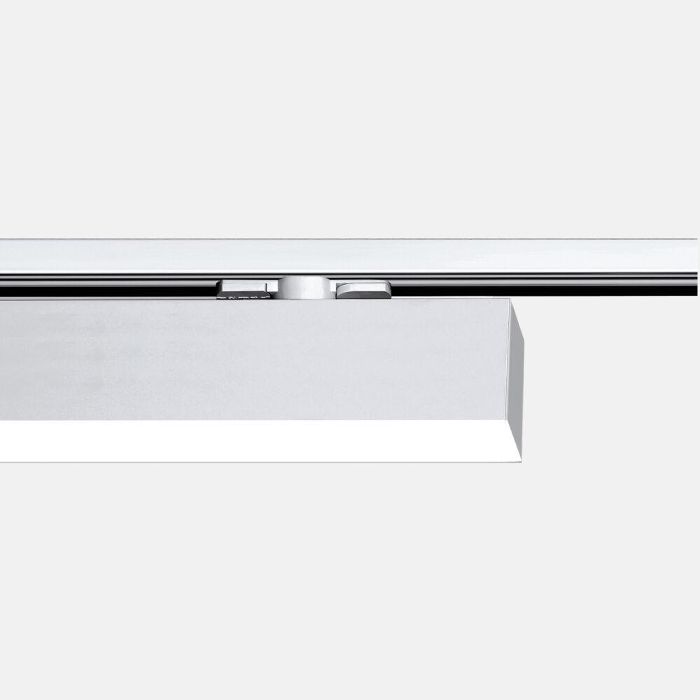

Matric 38mm 3-Phase Track - C1

LC1OEE-840M-L890

Lightnet

LED surface-mounted luminaire for 3-phase tracks. Direct only light distribution. Light channel made of aluminium profile with 38mm profile width. Precise length production according to specifications possible. Surface natural anodised or white, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Opal diffuser made of acrylic glass and and ambient diffuser with omnidirectional light distribution for general lighting. Wallwasher for homogeneous vertical illuminance. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Track adapter optionally EUTRAC or GLOBAL.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 16 W 1420 lm 89 lm/W 4000 K 82
Matric 38mm 3-Phase Track - C1

Matric 38mm 3-Phase Track - C1

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 890 mm

Anchura: 38 mm

Altura ajustable: 75 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 16 W

Protección

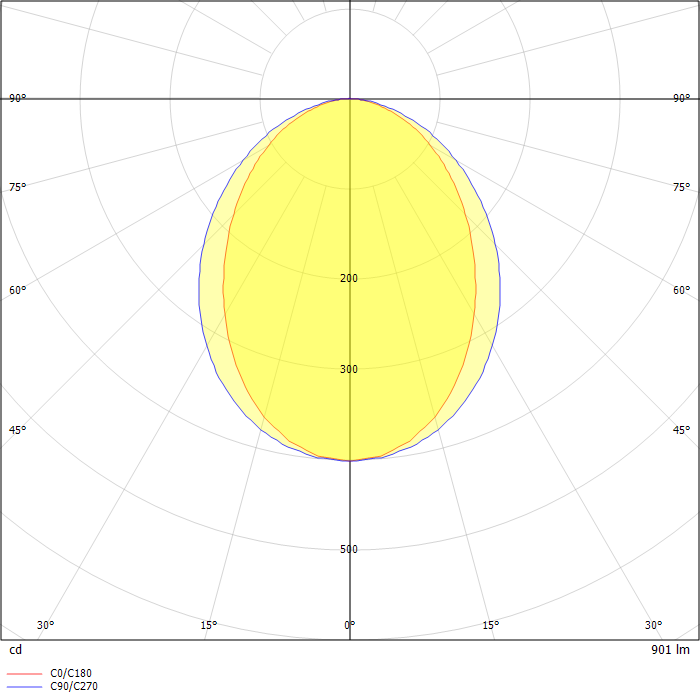

Dato fotométrico

ZIP file
