Hoja de dato de productos

TENUO

671949.004

RZB

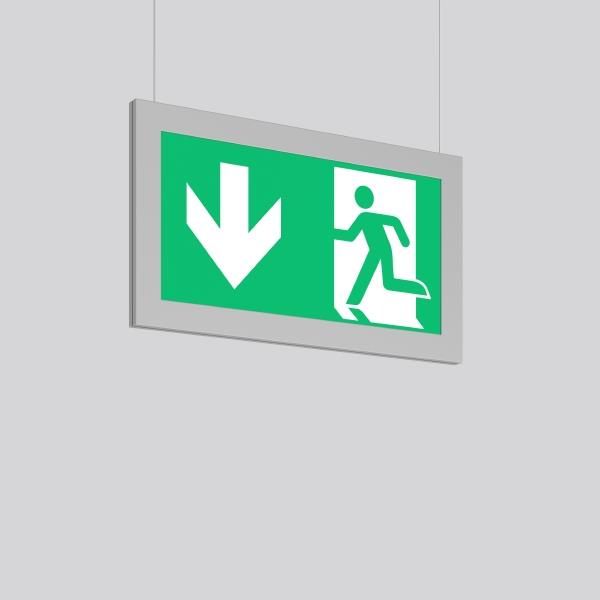

Series: TENUO Luminaire for escape route identification. Housing: anodised aluminium, silver. Display panel: patented MicroLens technology and legend on both sides. 2-point steel cable suspension, steplessly adjustable. Electronic ballast included. Self-contained system with automatic self-test. Please indicate legend number when placing your order! Colour: silver, matt (approx. RAL 9006) Length: 350 mm Width: 56 mm Height: 200 mm Suspension length: 500 mm Weight: 1.97 kg Operating mode: maintained power mode Viewing Distance: 30 m Duration time: 3 h Lamp: LED Socket: without socket Colour temperature: 5700K Colour rendering index (CRI): 80 System power: 7.1 W System power, emergency: - Control gear: EB Protection class: I Type of protection: IP 40

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 0,01 W 1 lm 100 lm/W 4000 K 80
TENUO

TENUO

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Pendular

Forma y medidas

Longitud: 56 mm

Anchura: 350 mm

Altura ajustable: 200 mm

Ajustabilidad

Fijo

Diseño

Color de carcasa: Gris plateado

Eléctrico

Potencia: 0,01 W

Protección

IP: 40

IK: 03

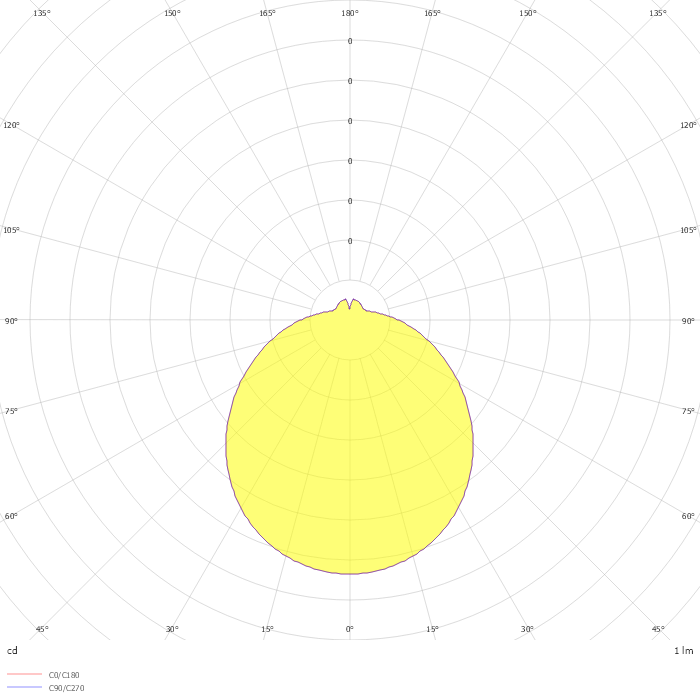

Dato fotométrico

ZIP file
