Hoja de dato de productos
ENTERO RD-S TRIMLESS IP SOFT 93045
28484 9030
Delta Light

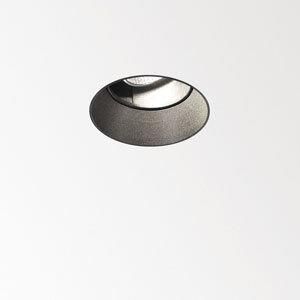

Luminaire, ceiling recessed (indoor use) from Deltalight, named ENTERO RD-S TRIMLESS IP SOFT 93045, available in the colour(s): black, full white, gold coloured. For recessed mounting, a round opening (for installing a custom mounting kit) is needed and a min. depth for recessing of 115 mm. This luminaire is equipped with LED array 10,2W / CRI>90 (R9: 50) / 3000K-1800K / 1038lm with an optional driver, suitable for currents of 500mA. Light distributor: reflector 45°.
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 10,2 W | 1038 lm | 102 lm/W | 1800 K | 90 |
| 1 x LED | 10,2 W | 1038 lm | 102 lm/W | 1800 K | 90 |
| 1 x LED | 10,2 W | 1038 lm | 102 lm/W | 1800 K | 90 |
Tipo de Montaje
Empotrado en techo
Forma y medidas
Altura ajustable: 1 mm
Diámetro: 79 mm
Peso: 0,245 kg
Eléctrico
Potencia: 10,2 W
Clases de aislamiento: II
Protección
IP: 44
Certificados: CE

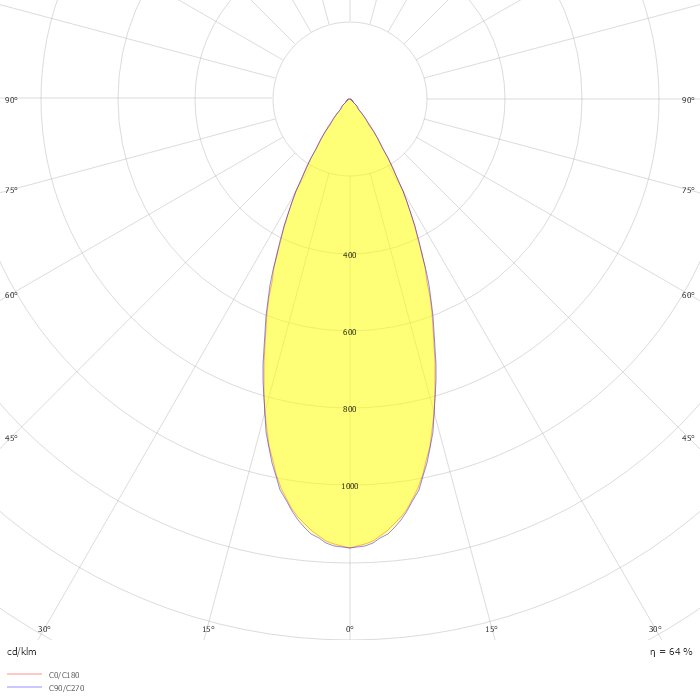

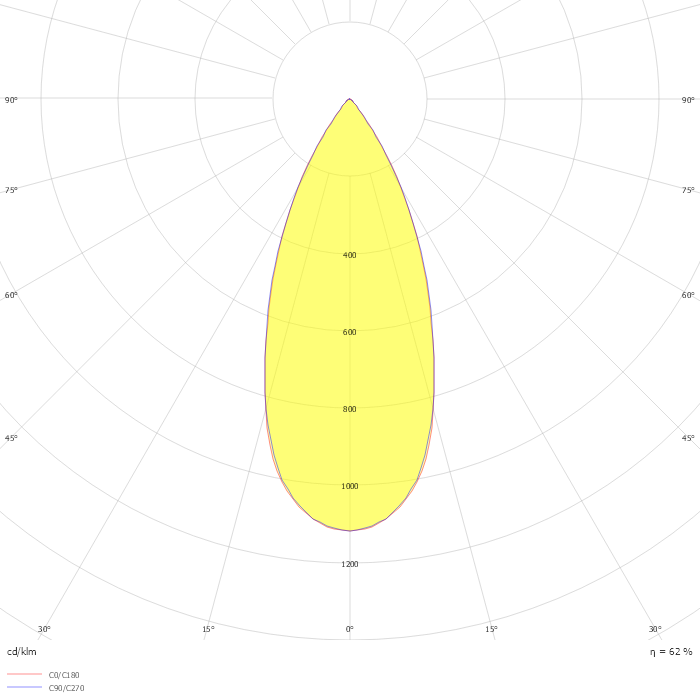

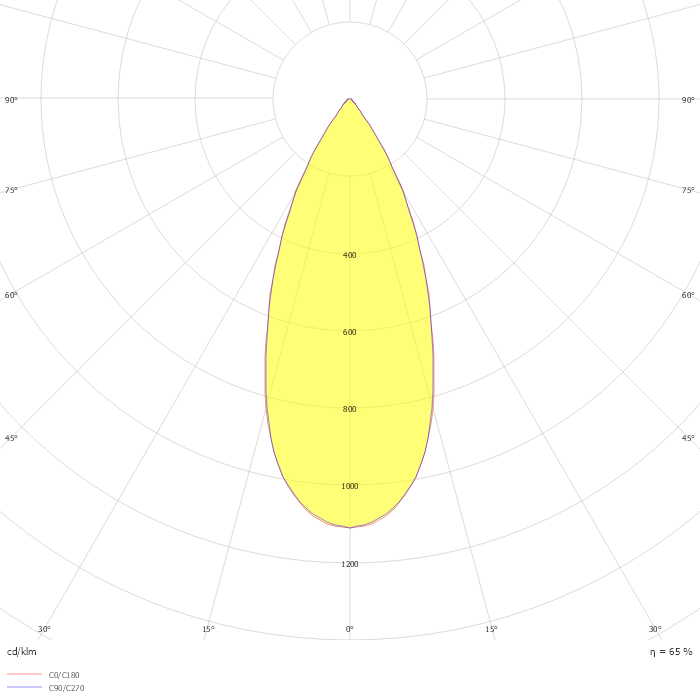

Dato fotométrico
ZIP file
