Hoja de dato de productos

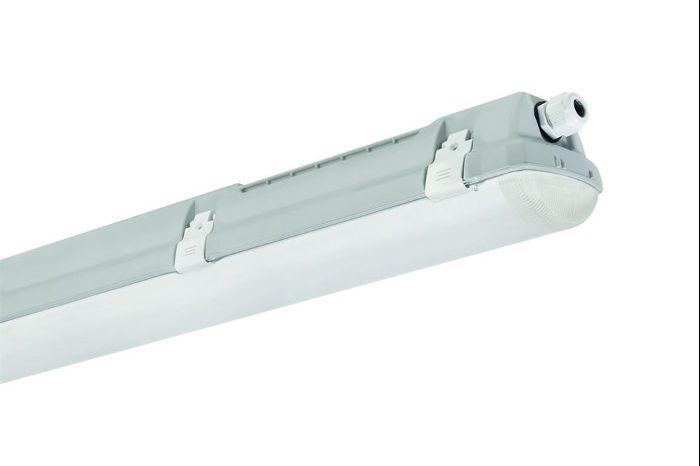

NANOTTICA 1.5ft ABSc 4000/840 1F

100696

TREVOS

absolute control over emitted light thanks to patented nano-optics; variable suspension spacing ranging from 970 - 1230 mm; enable the light to be installed onto suspension fittings left over from previous lighting; basic beam angle: medium beam (MB); optimal mounting height: 3.5 to 8 m; ON/OFF electronic driver (AC, DC on demand); Body: dark grey ABS (high chemical resistance, UV stability, RAL 7001); Diffuser: clear AC with nano-optics (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: stainless steel + polyamide; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 25,3 W; Luminaire flux: 3680 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK06; Ambient temperature: -25|50 °C; Weight: 2,1 kg;

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 25,3 W 4180 lm 165 lm/W 4000 K 80
NANOTTICA 1.5ft ABSc 4000/840 1F

NANOTTICA 1.5ft ABSc 4000/840 1F

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 1455 mm

Anchura: 98 mm

Altura ajustable: 84 mm

Ajustabilidad

Fijo

Diseño

Impresión de Material: Plástico

Color de carcasa: Gris plateado, Blanco

Diseñador(a): TREVOS

Eléctrico

Potencia: 25,3 W

Balastos: ECG

Clases de aislamiento: I

Protección

IP: 66

IK: 06

Certificados: CE, ENEC

Otros números operativos

Intervalo de temperatura ambiente: -25...50 °C

Dato fotométrico

ZIP file
