Hoja de dato de productos

PLU R 18L105 WST BPSW CL1 D76 L740

96272413

Thorn Lighting

Decorative, post-top lantern with LED package with electronic driver. Class I electrical, IP66, IK08. Base in cast aluminium, powder coated silver-grey. Canopy in round shape, made from aluminium textured silver-grey (close to RAL9006). UV stabilised polycarbonate clear diffuser with anti-glare prisms. Internal wide street reflector. Equipped with power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Supplied complete in one box. Complete with 4000K LED To be post top mounted on a spigot of Ø76mm, length 100mm. Dimensions: Ø564 x 564 mm Total power: 60 W Weight: 8.1 kg Scx: 0.073m² Luminaire efficacy: 79 lm/W

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 60 W 4738 lm 79 lm/W 3000 K 70
PLU R 18L105 WST BPSW CL1 D76 L740

PLU R 18L105 WST BPSW CL1 D76 L740

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Altura ajustable: 564 mm

Diámetro: 564 mm

Peso: 8,1 kg

Diseño

Impresión de Material: Aluminio

Color de carcasa: Gris plateado

Eléctrico

Potencia: 60 W

Voltaje: 230 V AC

Clases de aislamiento: I

Protección

IP: 66

IK: 08

Certificados: CE

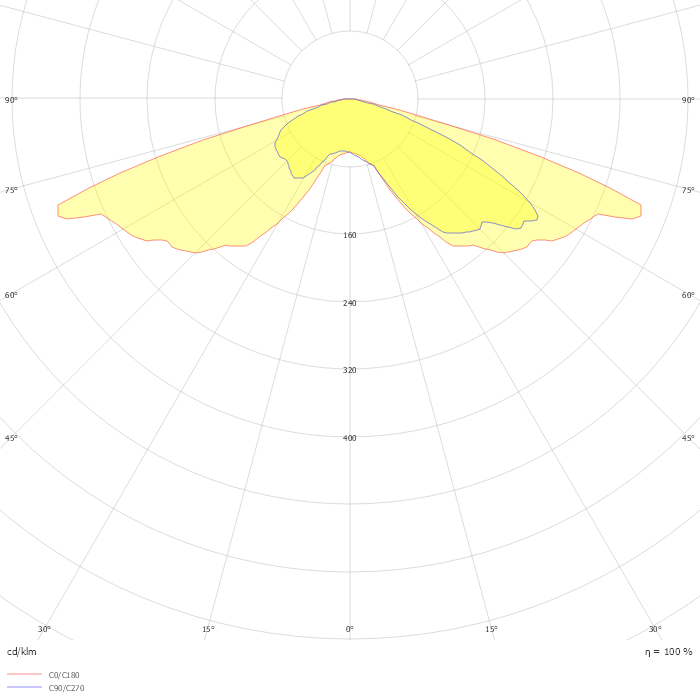

Dato fotométrico

ZIP file
