Hoja de dato de productos

Passway 21W - Area Distribution - 1100mm Root Mounted - 4000K

PW20423/AREA

Thorlux Lighting

Imagen de productos 1: Passway 21W - Area Distribution - 1100mm Root Mounted - 4000K
Imagen de productos 1: Passway 21W - Area Distribution - 1100mm Root Mounted - 4000K

Imagen de productos 1: Passway 21W - Area Distribution - 1100mm Root Mounted - 4000K



IP
66

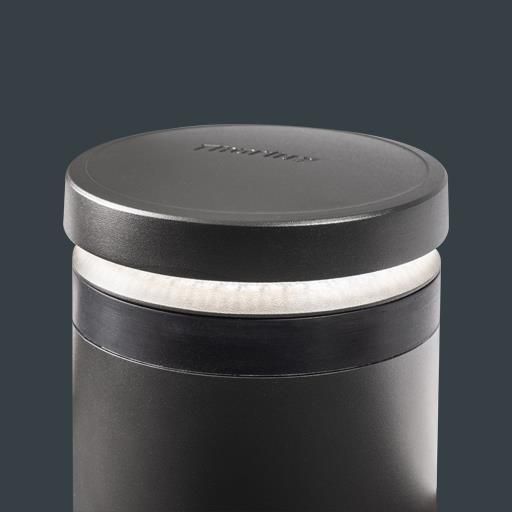

The Passway is a lighting bollard designed to protect itself and those around it. A contemporary, highly robust and optically refined LED bollard with an abundance of unique features Contained within the IP66, IK10 head unit, custom designed, high performance optics direct the light exactly where it is needed. A dedicated lens for each LED ensures the most efficient distribution of light resulting in highly impressive luminaire spacings whilst still maintaining uniformity. A choice of two distribution options are available. The area distribution provides 360° light output whilst the pathway distribution gives 180°. All versions have less than 2% upward light component making Passway suitable for rural as well as urban environments.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 21 W 1495 lm 60 lm/W 4000 K 70
Passway 21W - Area Distribution - 1100mm Root Mounted - 4000K

Passway 21W - Area Distribution - 1100mm Root Mounted - 4000K

Emisión de luz 1

1 x LED

Tipo de Montaje

Bolardos

Forma y medidas

Altura ajustable: 1100 mm

Diámetro: 165 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 25 W

Protección

IP: 66

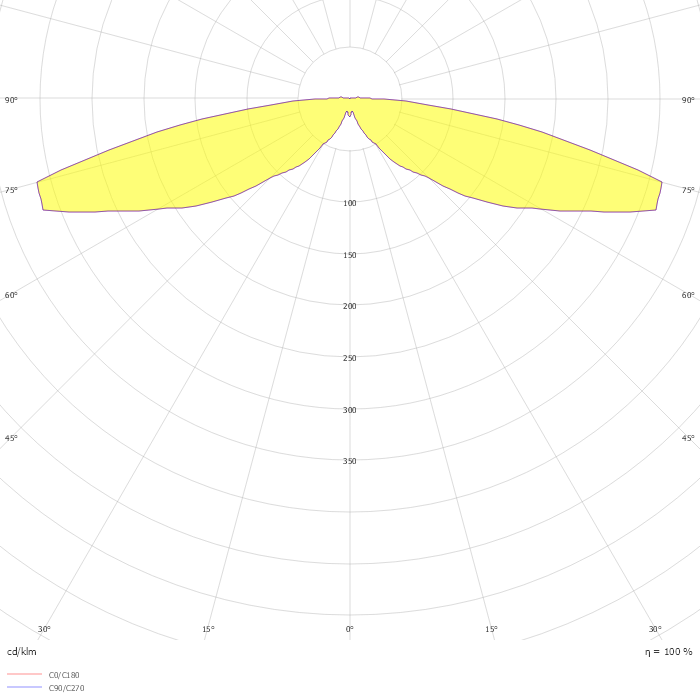

Dato fotométrico

ZIP file
