Hoja de dato de productos

RBX*FL 126 L90 E3

Rubix Flush LED Emergency

Dextra

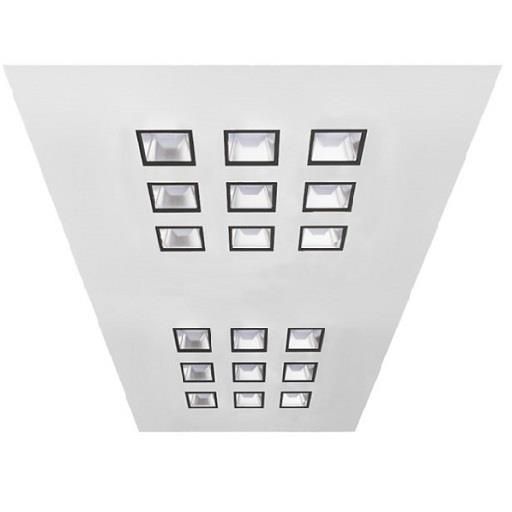

Rubix Flush - 1200x600 Recessed luminaire, white powder coated steel body, individual cells with opal surround trim for precise optical control. Replace * with P for Pull-up or R for Lay-in. Options: E3 - Emergency control gear (422 lumens output) ST3 - Emergency control gear self test AT3 - Emergency control gear DALI auto test S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) H - High Frequency Dimming (Analogue 1-10v) R44 - Daylight regulating and Occupancy Sensor RAS - Reacta Air Wireless occupancy and daylight dimming RLS - Reacta-Link Wireless Presence & Daylight Sensor RCS - Reacta-Control Wireless, Presence BL - Blue Cell Surround OR - Orange Cell Surround R - Red Cell Surround BK - Black Cell Surround AH25 - Air handling 25 litres per second

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 54,5 W 7188 lm 132 lm/W 4000 K 80
RBX*FL 126 L90 E3

RBX*FL 126 L90 E3

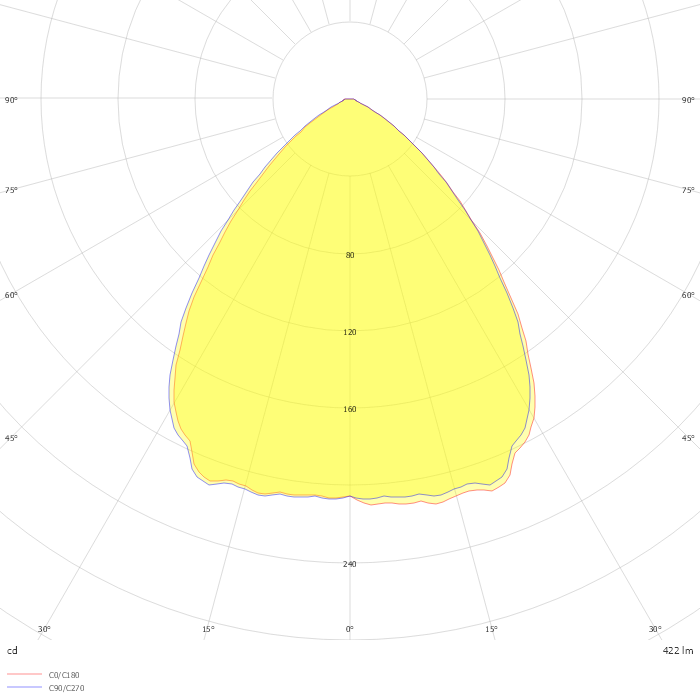

Emisión de luz 1 (integrada)

LED

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 3,8 W 422 lm 111 lm/W 4000 K 80
RBX*FL 126 L90 E3

RBX*FL 126 L90 E3

Emisión de luz 2 (integrada)

LED

Tipo de Montaje

Empotrado en techo

Forma y medidas

Longitud: 1200 mm

Anchura: 600 mm

Altura ajustable: 53 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 58,3 W

Balastos: ECG

Protección

IP: 20

Certificados: CE

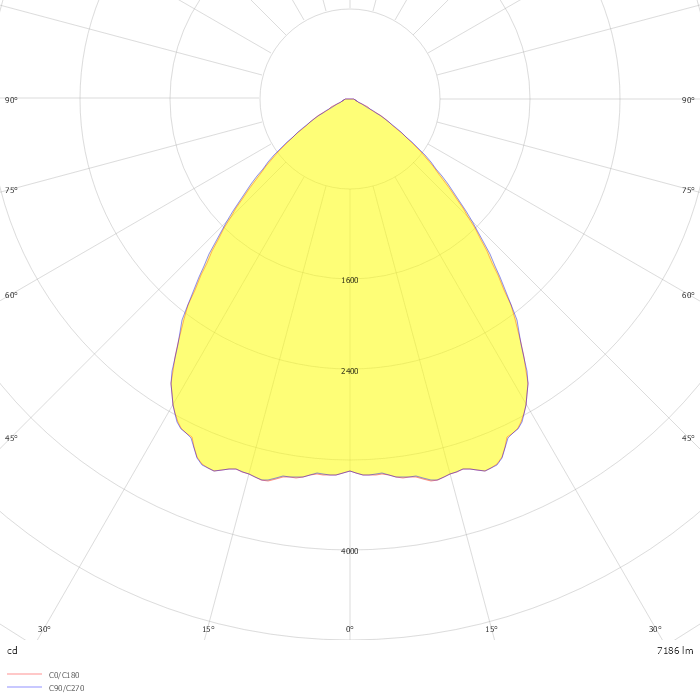

Dato fotométrico

ZIP file
