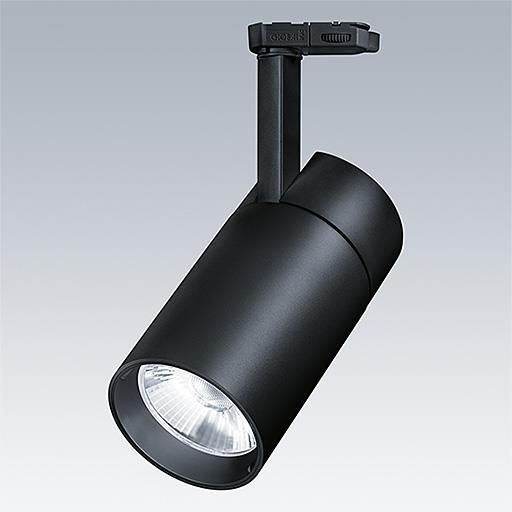

An LED spotlight with very wide flood distribution and integral fixed output control gear, for 100-240V, 50/60Hz supply. Track mounted (or surface mounted using adaptor accessory) via global GA69 3-phase adaptor. Class I electrical, IP20. Body: die-cast aluminium, painted black. Driver box: black polycarbonate. Complete with 4000K LED. Spotlight can be rotated through 350° and tilted up to 90°. Light distribution can be altered by changing the lens and / or using external attachments. Dimensions: Ø95 x 187 mm Total power: 29.8 W Luminaire luminous flux: 2788 lm Luminaire efficacy: 94 lm/W Weight: 1.3 kg
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 29,8 W | 2788 lm | 94 lm/W | 3000 K | 90 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Altura ajustable: 187 mm
Diámetro: 95 mm
Peso: 1,3 kg
Diseño
Impresión de Material: Aluminio
Color de carcasa: Negro
Eléctrico
Potencia: 29,8 W
Voltaje: 100-240 V AC
Clases de aislamiento: I
Protección
IP: 20
Certificados: CE

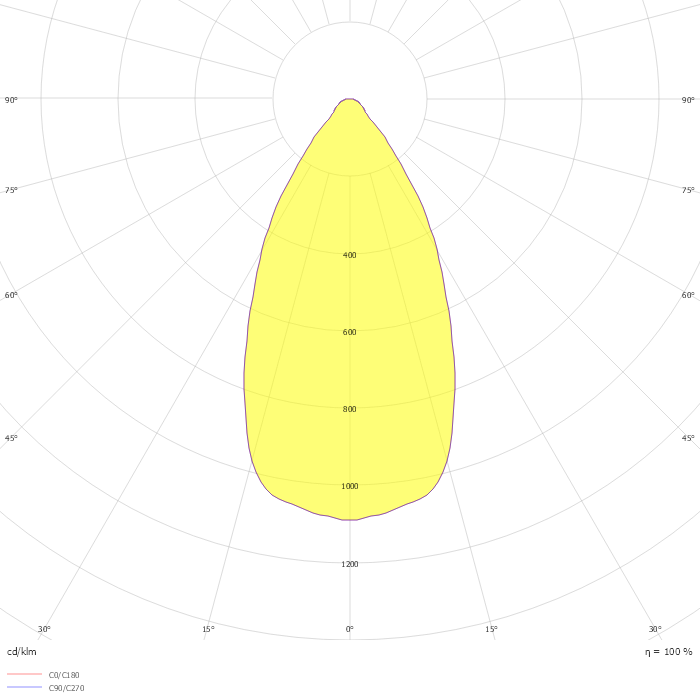

Dato fotométrico
ZIP file
