Hoja de dato de productos

NADELSPOT PRO

582089.0031.76

RZB

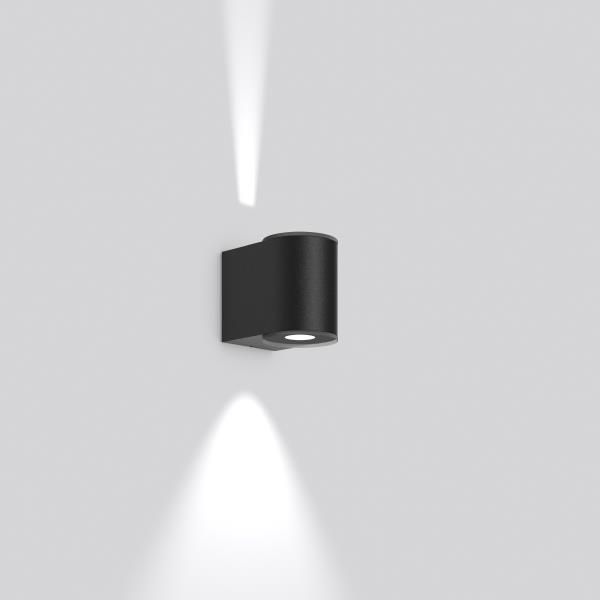

Series: NADELSPOT PRO Wallscaping: elegant and innovative wall luminaire for accent lighting. Housing made of corrosion-resistant die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Cover made of ceramic-coated toughened glass with bayonet lock. COB LED with socket for easy replacement. Light emission: up. Spot lens, narrow beam. Light emission: down. with rotationally symmetrical reflector. Fixing on the wall outside the sealed volume, drill hole deviations can be compensated. Screwless luminaire fixing via RZB Gravolock System. Electrical plug and play featuring quick connector. Cable entry granting two cables for loop-through. Driver integrated. Dimmable DALI. Colour: anthracite metallic (DB703) Length: 100 mm Width: 154 mm Height: 127 mm Lamp: LED System power: 23 W Rated luminous flux: 1400 lm Luminous efficiency: 61 lm/W Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 65

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 23 W 1400 lm 61 lm/W 3000 K 80
NADELSPOT PRO

NADELSPOT PRO

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en pared

Forma y medidas

Longitud: 154 mm

Anchura: 100 mm

Altura ajustable: 127 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 23 W

Protección

IP: 65

IK: 07

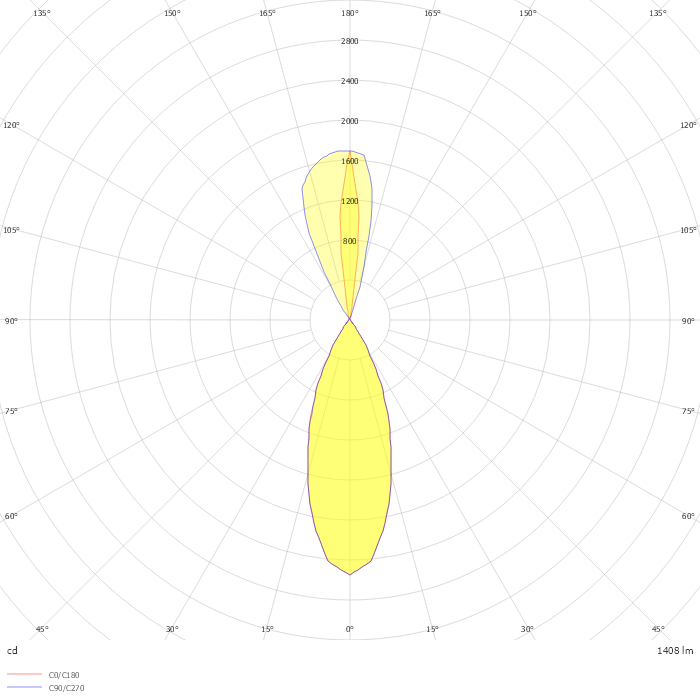

Dato fotométrico

ZIP file
