Hoja de dato de productos

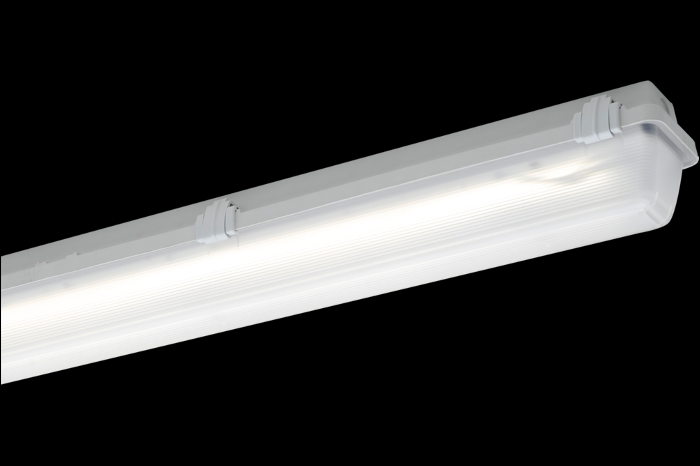

161 LED emergency light fitting

161 15L34 ZB-CSE (16118 0129)

Schuch

LED emergency light fitting, 21 W, 3440 lm, 164 lm/W, Central supply (ZB), Monitoring module, Class I, IP65, symmetrical wide beam, 4000 K, CRI≥ 80, Ta -20 °C/+40 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Diffuser PMMA satined, Closure Plastic, Housing Glass fibre reinforced polyester, Colour grey. Sturdy LED damp-proof light fitting for connection to group or central battery systems with incorporated fuse for selective disconnection in case of failure. Highly impact-resistant glass fibre reinforced polyester housing and frosted diffuser with high impact resistance. Captive clips, multi-part, incl. two safety clips, silicone gasket. Powder-coated aluminium reflector with highly efficient Zhaga LED modules and ECG with overload and short circuit protection. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 1572,00 mm, Width/Diameter 116,00 mm, Height 125,00 mm, Net weight 3,20 kg.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 21 W 3439 lm 164 lm/W 4000 K 80
161 LED emergency light fitting

161 LED emergency light fitting

Emisión de luz 1 (integrada, emergencia)

LED

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 21 W 3439 lm 164 lm/W 4000 K 80
161 LED emergency light fitting

161 LED emergency light fitting

Emisión de luz 2 (integrada)

LED

Tipo de Montaje

Montaje en techo, Pendular, Raíl de contacto, Montaje en pared

Forma y medidas

Longitud: 1572 mm

Anchura: 116 mm

Altura ajustable: 125 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 42 W

Clases de aislamiento: I

Información sobre funciones emergentes

Iluminación de emergencia suplementaria

Señal de emergencia: N/A

Protección

IP: 65

IK: 05

Certificados: CE

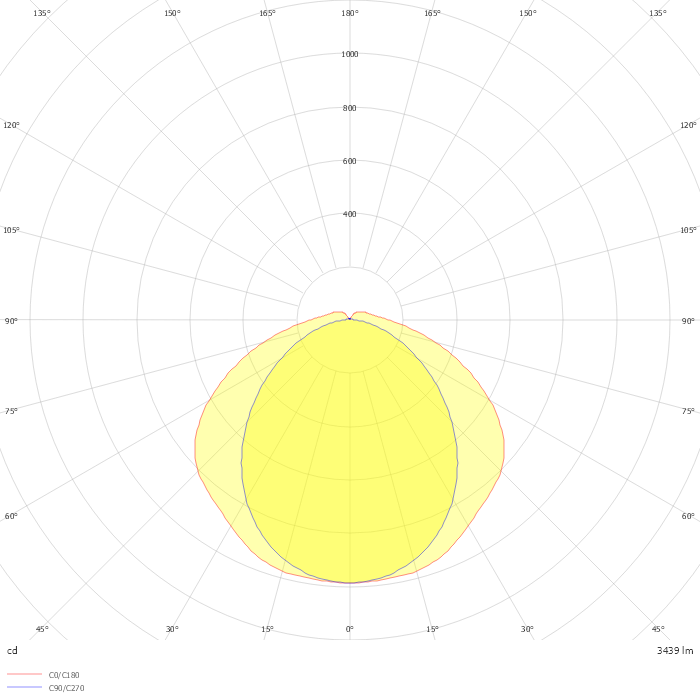

Dato fotométrico

ZIP file
