Hoja de dato de productos

M20/M26H - SPY 271 92730 MDL

23311 9220

Delta Light

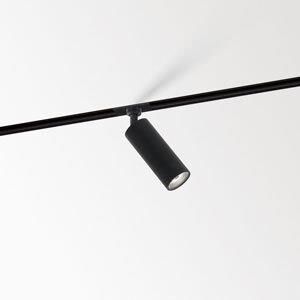

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named M20/M26H - SPY 271 92730 MDL, available in the colour(s): black, flemish bronze, flemish gold, gold coloured, white. This luminaire can be used with the following 48V magnetic lighting system(s): SHIFTLINE M26H - PROFILE, SPLITLINE M20 - PROFILE, SPLITLINE M20 ST - PROFILE. This luminaire is equipped with LED array 5,8W / CRI>90 (R9: 60) / 2700K / 753lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: MDL = 1-10V or DALI or push button. Light distributor: reflector 30°.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 6 W 753 lm 126 lm/W 2700 K 90
1 x LED 6 W 753 lm 126 lm/W 2700 K 90
M20/M26H - SPY 271 92730 MDL

M20/M26H - SPY 271 92730 MDL

Emisión de luz 1

1 x LED

M20/M26H - SPY 271 92730 MDL

M20/M26H - SPY 271 92730 MDL

Emisión de luz 1

1 x LED

Tipo de Montaje

Montaje en techo, Raíl de contacto, Montaje en pared, Pendular, Empotrado en pared

Forma y medidas

Longitud: 20 mm

Anchura: 170 mm

Altura ajustable: 1 mm

Eléctrico

Potencia: 6 W

Clases de aislamiento: II

Protección

IP: 20

Certificados: CE

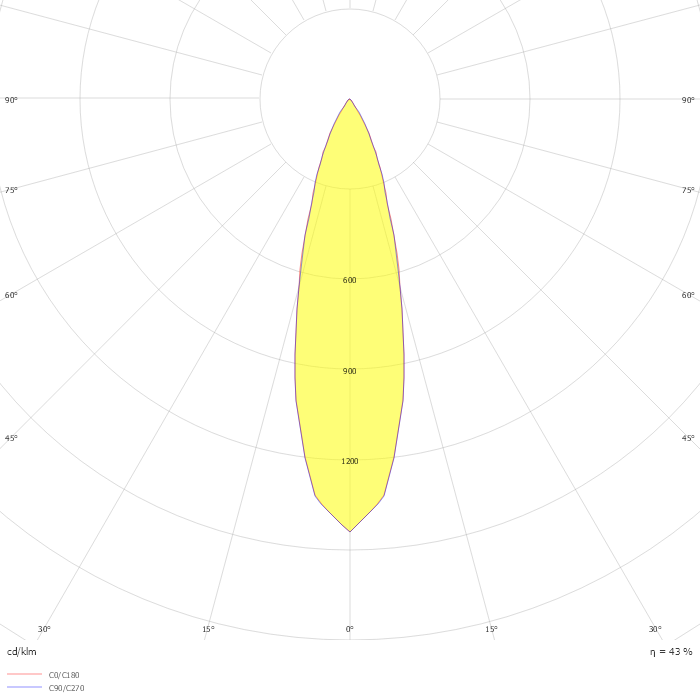

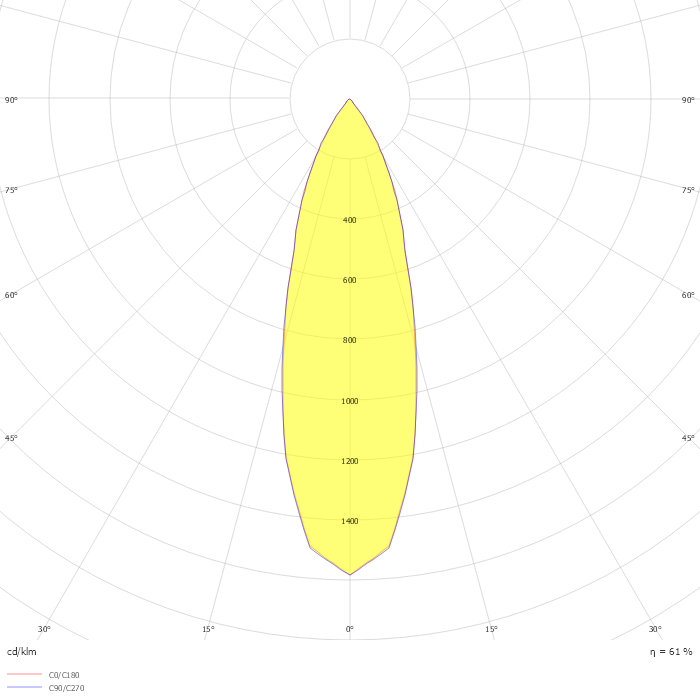

Dato fotométrico

ZIP file
