Hoja de dato de productos
SPM20 - SPY 392 AIR 92740
29813 9230
Delta Light

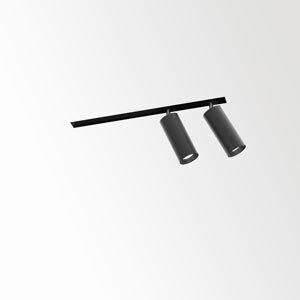

Luminaire, ceiling recessed (indoor use) from Deltalight, named SPM20 - SPY 392 AIR 92740, available in the colour(s): black, flemish bronze, flemish gold, gold coloured, white. For recessed mounting, a rectangular opening (for installing a custom mounting kit) is needed This luminaire is equipped with 2 x (LED array 5,8-8,6W / CRI>90 (R9: 60) / 2700K / 753-1041lm) with an optional driver, suitable for currents of 350mA to 500mA. Light distributor: reflector 40°.
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 753 lm | 126 lm/W | 2700 K | 90 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 20 mm
Anchura: 304 mm
Altura ajustable: 1 mm
Eléctrico
Potencia: 12-18 W
Clases de aislamiento: II
Protección
IP: 20
Certificados: CE

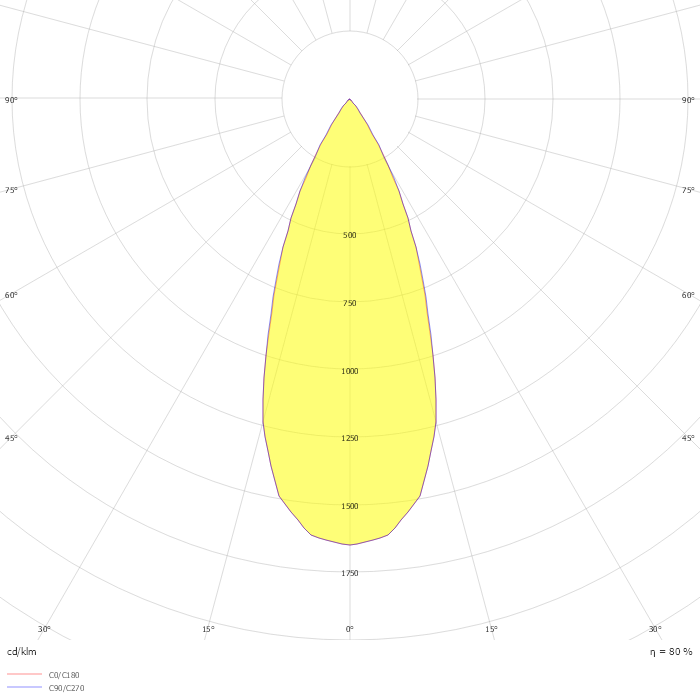

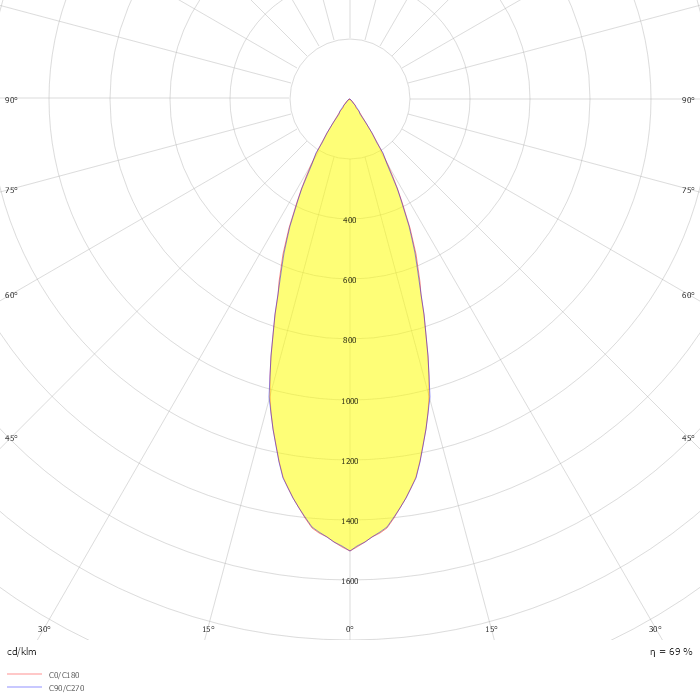

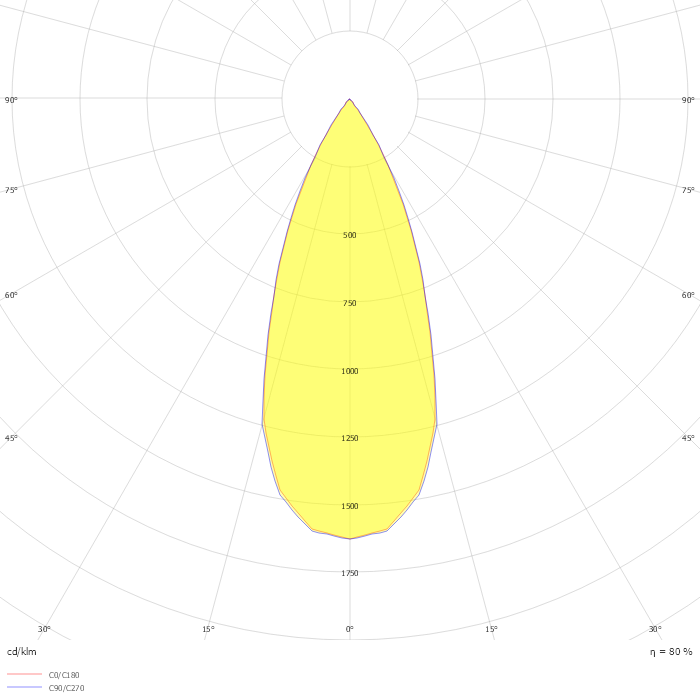

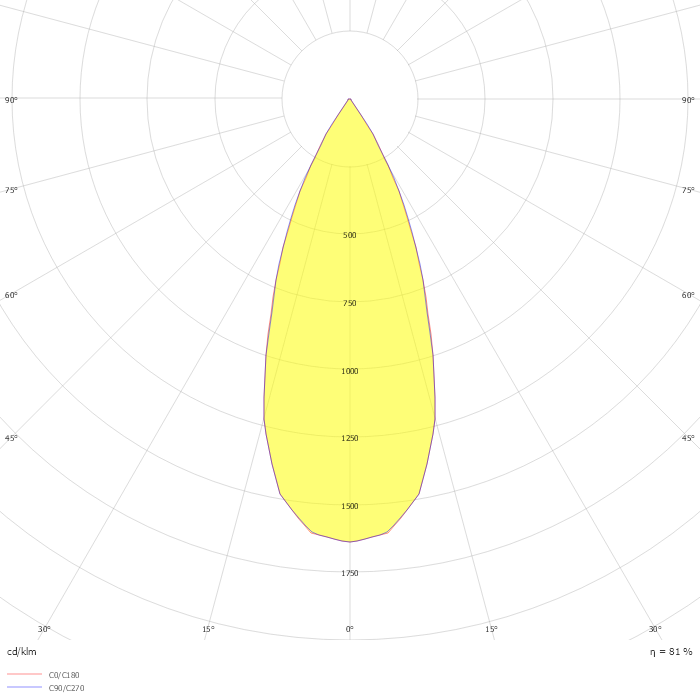

Dato fotométrico
ZIP file
