Hoja de dato de productos

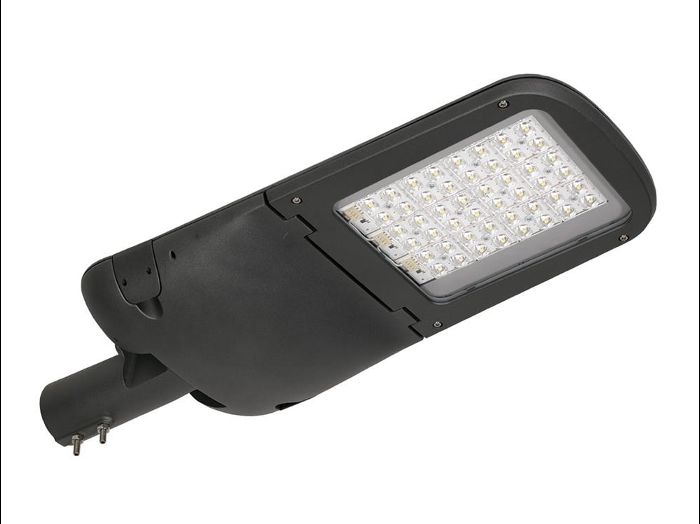

EVELUX S 24/600/727 DALI WR1

104514

TREVOS

light fitting resistant to dust, humidity and spraying water, suitable for roads, residential areas, parking areas and open spaces; light fitting suitable for lighting outdoor sports halls, certified for ball impact safety pursuant to DIN 18032-3; wide range of optional versions of the light fitting's optical system for diverse applications; digitally dimmable DALI driver (AC/DC); Body: aluminium alloy, black grey (RAL 7021); Diffuser: heat-strengthened safety glass; Connection: screw terminal block with disconnector for conductors with maximum cross-section of 4 mm2; Power: 45,3 W; Luminaire flux: 6450 lm; Lifetime: L80/B20; 100000 hours; Impact strength: IK10; Ambient temperature: -40|45 °C; Weight: 5 kg;

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 45,3 W 7500 lm 166 lm/W 2700 K 80
EVELUX S 24/600/727 DALI WR1

EVELUX S 24/600/727 DALI WR1

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Longitud: 630 mm

Anchura: 265 mm

Altura ajustable: 95 mm

Ajustabilidad

Fijo

Diseño

Impresión de Material: Aluminio

Color de carcasa: Antracita / Grafito

Diseñador(a): TREVOS

Eléctrico

Potencia: 45,3 W

Balastos: ECG

Control: DALI

Clases de aislamiento: I

Protección

IP: 66

IK: 10

Certificados: CE, ENEC

Otros números operativos

Intervalo de temperatura ambiente: -40...45 °C

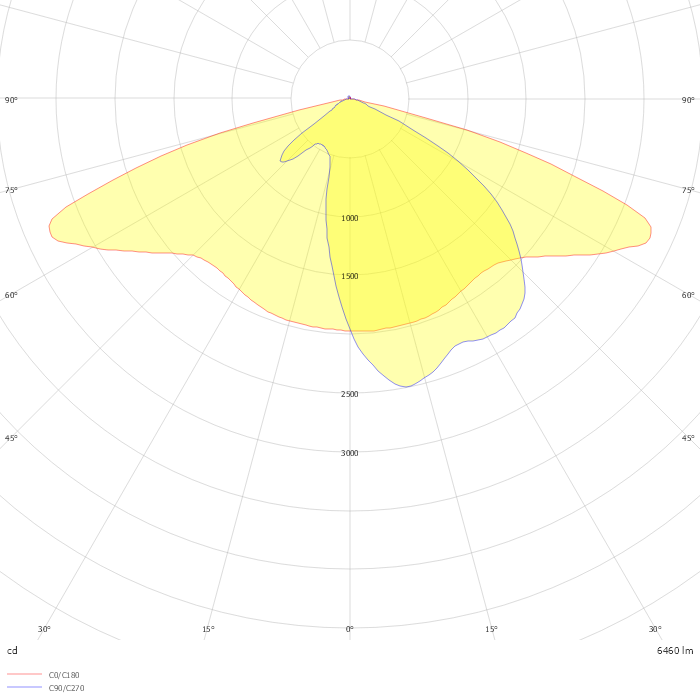

Dato fotométrico

ZIP file
