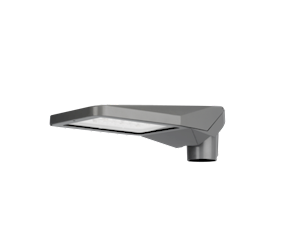

BRISA FUNCTIONALLY COMPLETE From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna. This versatility makes the BRISA line suitable for business parks, industrial estates, ecological zones, parking spaces, large car parks, cycle paths, roundabouts, holiday parks, footpaths and residential areas. All the luminaires in the BRISA line are impact-resistant (IK 10) and waterproof (IP 66).
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 6,7 W | 56 lm | 8 lm/W | 4000 K | 70 |
Tipo de Montaje
Mástil integrado, Montaje en el cima de mástil
Forma y medidas
Longitud: 547 mm
Anchura: 250 mm
Altura ajustable: 100 mm
Ajustabilidad
Fijo
Diseño
Impresión de Material: Aluminio
Color de carcasa: Negro, Antracita / Grafito, Gris plateado
Eléctrico
Potencia: 6,7 W
Protección
IP: 66
IK: 10

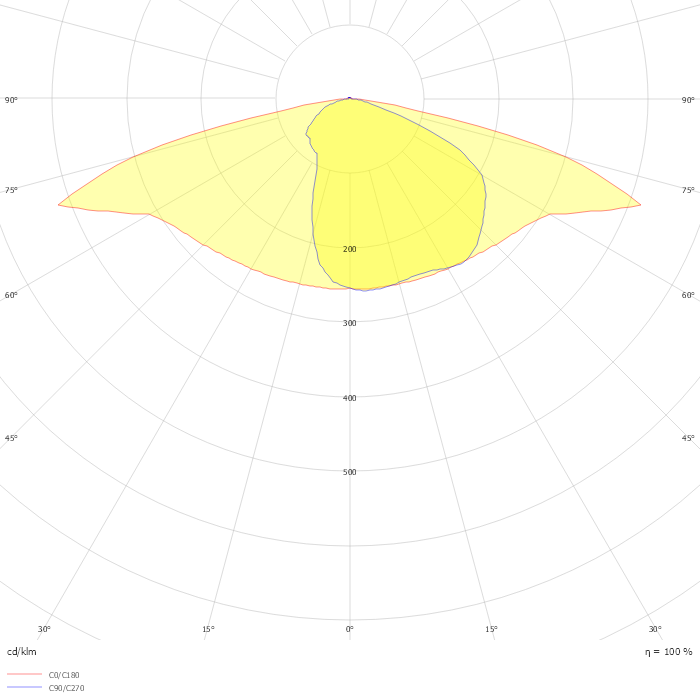

Dato fotométrico
ZIP file
