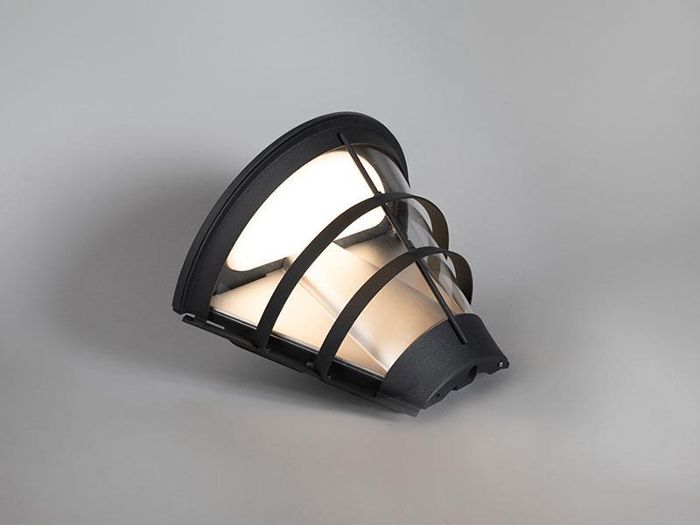

Easily installed wall luminaire in the Pave family with stylish design; available with clear or opal glass. Wide light distribution for attractive facade lighting. Plenty of space for easy installation. Choose the appearance and increase anti-glare for your luminaire in combination with Top, Deco II and Deco IV. Number sign available as an accessory for location at entrances (figures 3x 0-9 and letters 3x A-J). Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. Rear element has dual cable bushings for easy through wiring.
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 6,17 W | 514 lm | 83 lm/W | 3000 K | 80 |
Tipo de Montaje
Montaje en pared
Forma y medidas
Longitud: 180 mm
Anchura: 301 mm
Altura ajustable: 240 mm
Ajustabilidad
Fijo
Eléctrico
Potencia: 6,17 W
Protección
IP: 65
IK: 10
Certificados: CE

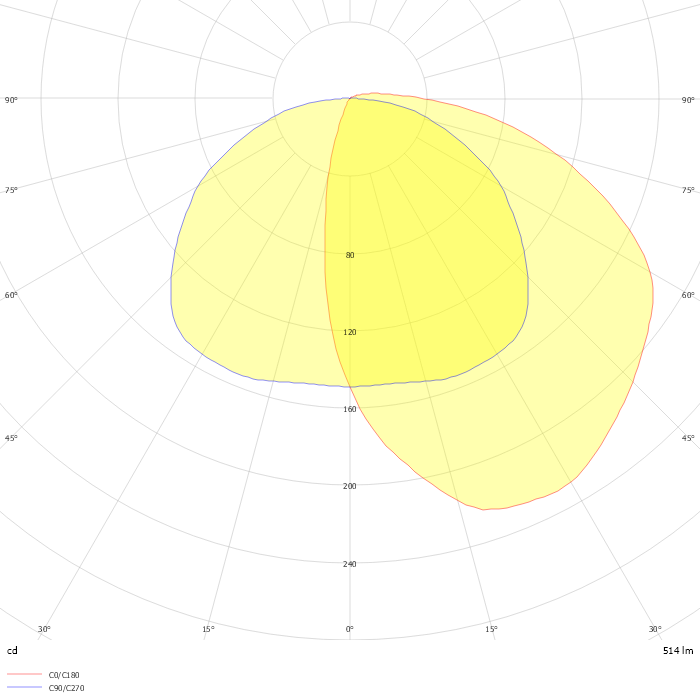

Dato fotométrico
ZIP file
