Hoja de dato de productos

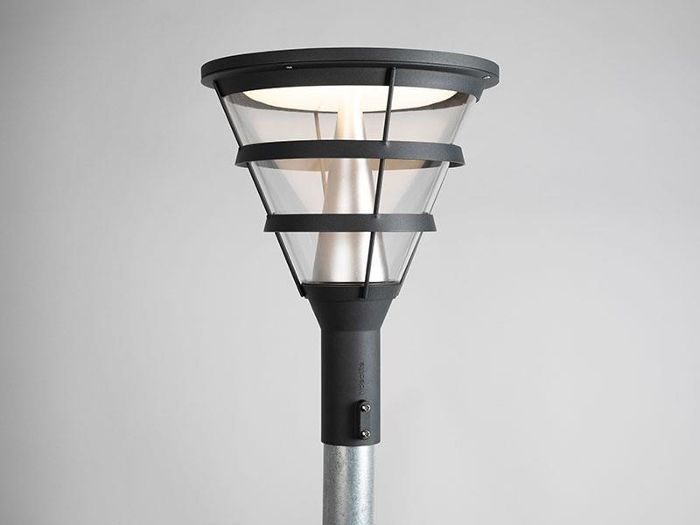

Pave Post Deco II Anthracite 3000K 30W

7749671

Hide-a-lite

Stylish post luminaire in the Pave family. Perfect outside a large property or car park that needs a lot of light. Choose the appearance and increase anti-glare for your luminaire in combination with Top, Deco II and Deco IV. Post bracket for 60mm posts. Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. 10kV surge voltage protection as standard. Adapter available as accessory for fitting on 48mm post. Comes with 5m of pre-mounted rubber cable for easy connection.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 30 W 2346 lm 78 lm/W 3000 K 80
Pave Post Deco II Anthracite 3000K 30W

Pave Post Deco II Anthracite 3000K 30W

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Altura ajustable: 407 mm

Diámetro: 350 mm

Ajustabilidad

Reclinable

Eléctrico

Potencia: 30 W

Clases de aislamiento: I

Protección

IP: 65

IK: 10

Certificados: CE

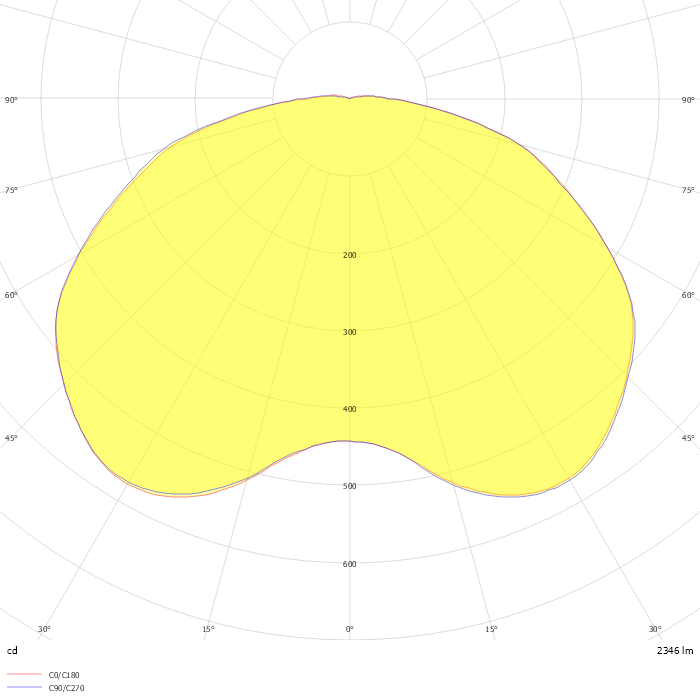

Dato fotométrico

ZIP file
