Hoja de dato de productos

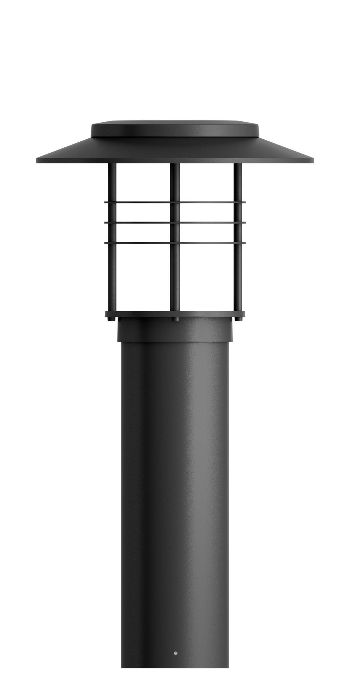

Forrey 2 bollard
FOR-10002-T3-W40
LIGMAN
- Lamp COB - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour 3000K , 4000K - Die-cast aluminium housing, frame and extruded aluminium column pre-treated before powder coating ensuring high corrosion resistance - Single cable entry - One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - Opal, impact-resistant, UV-stabilised polycarbonate diffuser - Models with shade will have colour white coating at inside of shade luminaire and outside surface coating according to colour of luminaire - Integral control gear
Tipo de Montaje
Bolardos
Forma y medidas
Altura ajustable: 824 mm
Diámetro: 412 mm
Peso: 6,1 kg
Ajustabilidad
Fijo
Diseño
Color de carcasa: Negro, Blanco, Gris plateado
Anti-glare
Anti-glare: Prevención de deslumbramiento: UGR < 19
Eléctrico
Potencia: 47,7 W
Voltaje: 230 V AC
Balastos: ECG
Control: Regulable 1..10V, DALI
Clases de aislamiento: I
Protección
IP: 65
IK: 08
Temperatura de superficie: 40 °C
Dato fotométrico
ZIP file
