Hoja de dato de productos

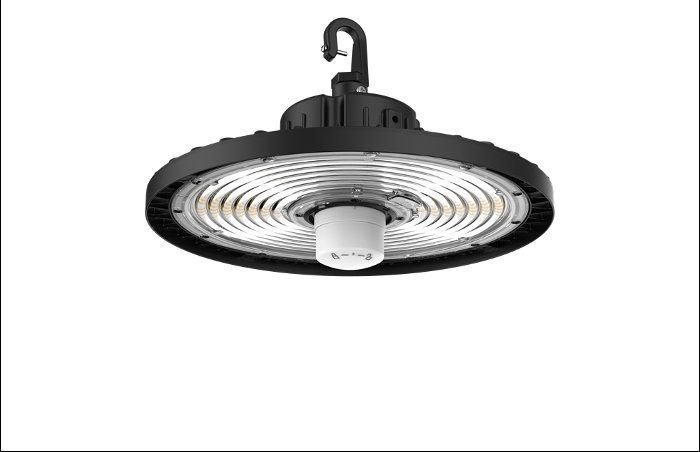

LED PFM HIGHBAY SC 200W 865 277V

4058075464452

LEDVANCE

LEDVANCE® LED PERFORMANCE SENSOR COMPATIBLE HIGH BAY is a reliable and high efficiency LED High bay with aluminum die-cast housing for both industry and commercial applications. It provides a performance LED alternative to traditional High bays. The range is available in 2 housing sizes for 4 different wattages to meet most of the application requirements. The motion sensor offers an additional energy saving, It’s an ideal solution for either retrofit or new construction. High system efficiency up to 140lm/W. 1-10V dimming. Be compatible with LEDVANEC HIGHBAY MOTION SENSOR. SMD LED design to maximize product reliability. Standard CCT: 4000K, 6500K, CRI >80. Aluminum die-cast housing, UV resistant high efficacy PC lens. IP65.Water and dust proof IK08 vandal-protected. Available in black housing. Long 50,000hr lifetime reduces maintenance costs. Pre-wired with 500mm flying cable (AU version with 1500mm flex and plug). Safety compliance certificates: CB.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 200 W 28000 lm 140 lm/W 6800 K 80
LED PFM HIGHBAY SC 200W 865 277V

LED PFM HIGHBAY SC 200W 865 277V

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Pendular

Forma y medidas

Altura ajustable: 10 mm

Diámetro: 281 mm

Ajustabilidad

Altura ajustable

Eléctrico

Potencia: 200 W

Protección

IP: 65

IK: 08

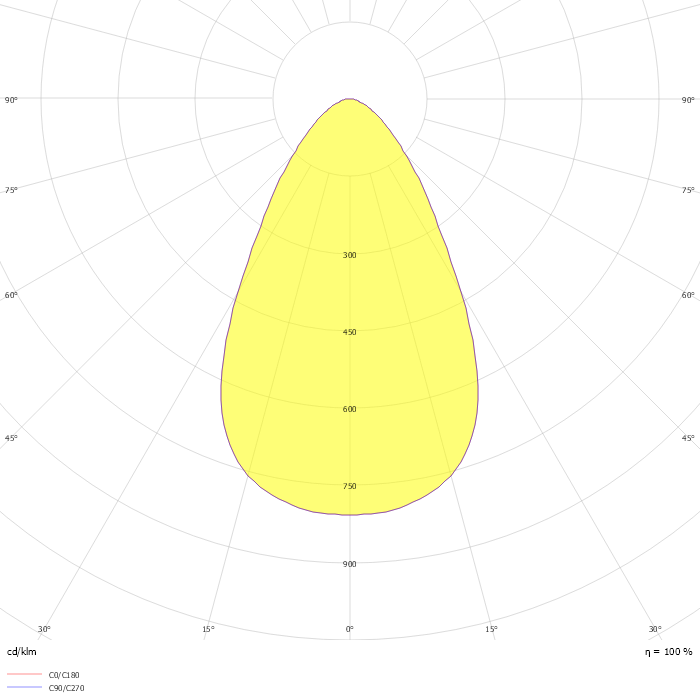

Dato fotométrico

ZIP file
