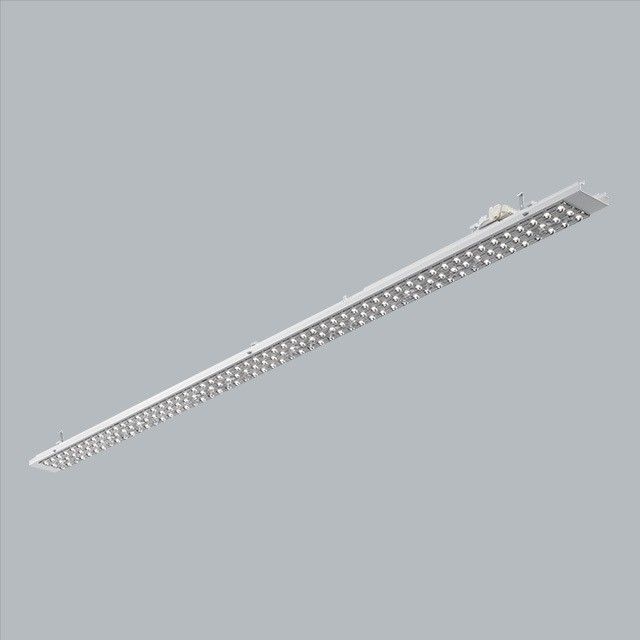

Indoor luminaire. Assembly: directly mounted to ceiling construction or surface mounted on slings. The body material is steel sheet. Colour - RAL 9016 (white). Dimensions: 1500 x 72 x 66 mm. Diffuser: optical system based on PMMA lenses. The efficiency of the optical system is 96,13%. Beam angle: (C0-C180) / (C90-C270) - 86,2° / 84,4°. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 h L80/B10. Luminaire luminous flux: 18746,7 lm. Power of luminaire: 123,3 W. Luminaire's light efficiency: 152 lm/W. Driver: DIM DALI (EDD). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 14 (B10), 22 (B16), 14 (C10), 22 (C16). Operating temperature range: -20 ÷ 35° C. Protection degree: IP20. Impact resistant: IK06. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0.
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 5 x LED | 24,66 W | 3900 lm | 158 lm/W | 3000 K | 80 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 1500 mm
Anchura: 72 mm
Altura ajustable: 66 mm
Ajustabilidad
Fijo
Diseño
Color de carcasa: Blanco
Eléctrico
Potencia: 123,3 W
Control: DALI
Clases de aislamiento: I
Protección
IP: 20
IK: 06
Otros números operativos
Intervalo de temperatura ambiente: -20...35 °C
Dato fotométrico
ZIP file
