Hoja de dato de productos

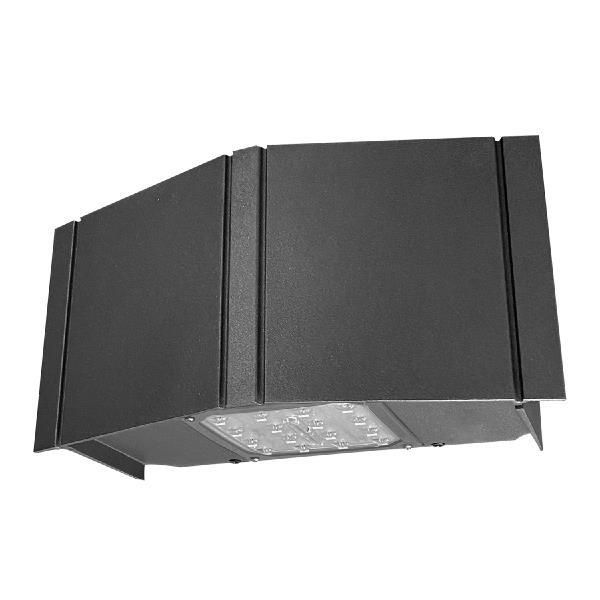

ENT Entri Triangle Reveals LED

ENT-SA1-727-U-SL2-XXB

Cooper Lighting

One-piece, die-cast aluminum housing and door, Flush mounted die-cast tool-less latch for ease of maintenance, Choice of eleven LED optical distributions, Fits 4” j-box and secured via two concealed stainless steel fasteners, Offered with optional uplight and colored or clear luminous window, Optional die-cast aluminum adapter box for egress and thru-way wiring, Proprietary circuit module withstands 10kV transient line surge (LED), Offers 9 specifiable CRI/CCT options within 5-step MacAdam ellipse, LED fixture features a five-year warranty

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 13 W 638 lm 49 lm/W 2700 K 70
ENT Entri Triangle Reveals LED

ENT Entri Triangle Reveals LED

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Altura ajustable: 10 mm

Diámetro: 152 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 13 W

Protección

IP: 47

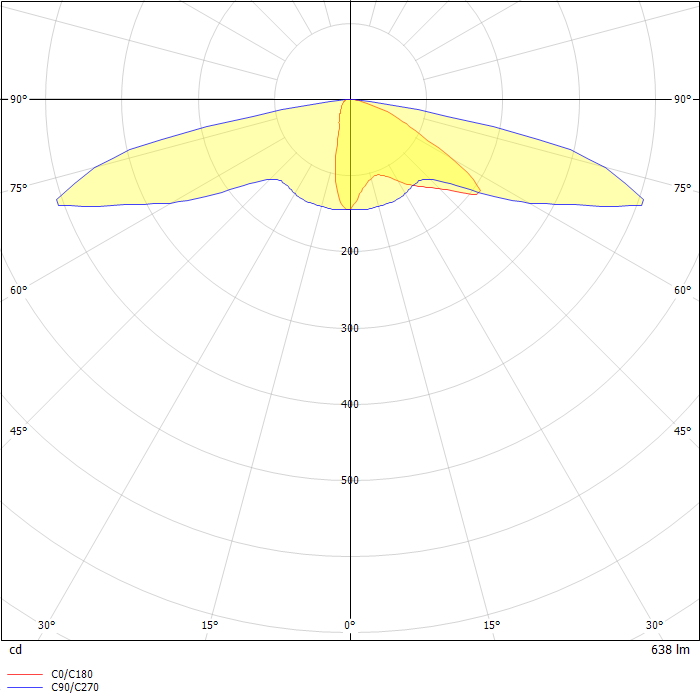

Dato fotométrico

ZIP file
