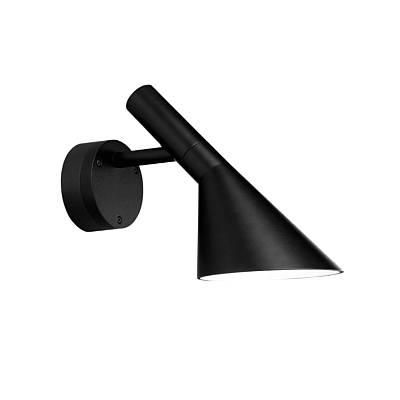

AJ 50 Wall Design: Arne Jacobsen Concept: The fixture emits downward directed light. The shade is painted white on the inside to ensure a soft comfortable light distribution. Finish: White, black or aluminium coloured with textured surface, powder coated. Materials: Shade: Die cast aluminium. Wall box: Die cast aluminium. Arm: Die cast aluminium. Mounting: Terminal block: 1x3x2.5mm². Cable entries: 2x bottom + 3x rear entries for Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm². Class: Ingress protection IP65. Electric shock protection I w. ground. IK06. Sizes and weights: Width x Height x Length (mm) 349 x 248 x 160 Max 2.0 kg Information: Compatible with leading edge mains dimmers. Please note that low power consumption on some products can affect dimming properties. This product is fitted with an integrated energy-saving LED light source. Should you wish to replace it, please contact Louis Poulsen so we can help you purchase the correct LED Replacement Kit. Please note that LED-replacement should always be carried out by an authorised electrician.
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 7,6 W | 428 lm | 56 lm/W | 3000 K | 90 |
Tipo de Montaje
Montaje en pared
Forma y medidas
Longitud: 349 mm
Anchura: 160 mm
Altura ajustable: 250 mm
Ajustabilidad
Fijo
Eléctrico
Potencia: 7,6 W
Clases de aislamiento: I
Protección
IP: 65
IK: 06

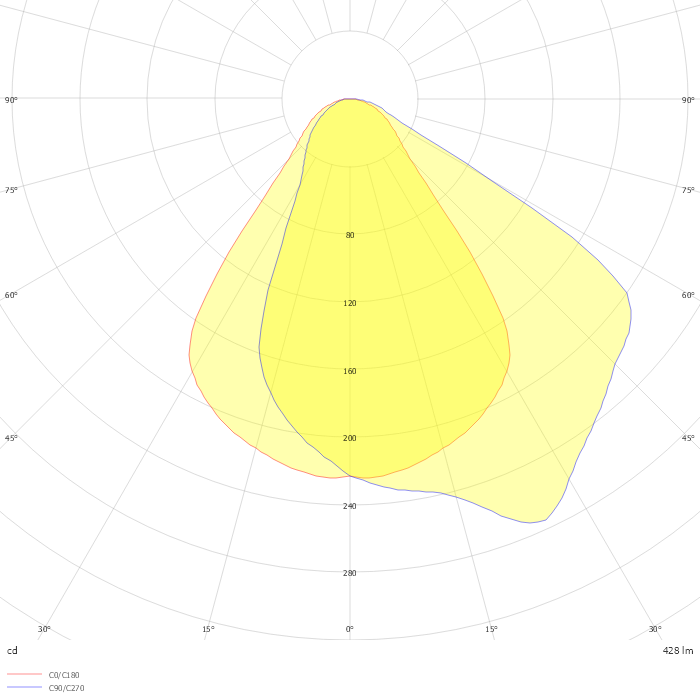

Dato fotométrico
ZIP file
