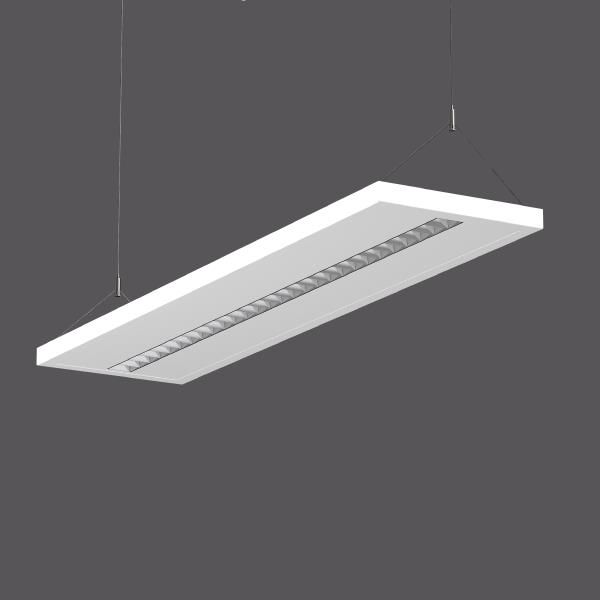

Hoja de dato de productos

Sonis EVO

901626.002

RZB

Series: Sonis EVO Type of Protection: IP 20 Protection Class: I Voltage: 220 - 240 V / 50 Hz, 60 Hz Housing and cover made of white powder-coated sheet steel, Alea Optical System: Reflector structure (ABS, aluminium vapour-plated, highly polished) with diffuser made of non-yellowing plastic (PMMA) opal for glare-free light at the workstation (screen-compliant according to EN 12464-1). 2 point steel cable suspension, infinitely height adjustable. Converter included. Lamp (LED) included. Available Colours: white Type of Installation: Pendant Dimensions: L 1202, B 302, H 33 Lamp: LED Colour Temperature: 3000K Socket 1: without socket Operating Mode Lamp 1: Converter not necessary Safety Marks: F-mark Impact Protection: IK03 (0,35 Joule) Luminaire flux LED: 3250lm System power: 29W Beam Angle: 78°/74° Number of fittings B10A: 3 Number of fittings B16A: 5 Number of fittings C10A: 7 Number of fittings C16A: 11 Inrush current: 14A Unified Glare Ratio: 18,3 EEC: A+

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 29 W 3250 lm 112 lm/W 3000 K 80
Sonis EVO

Sonis EVO

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Pendular

Forma y medidas

Longitud: 302 mm

Anchura: 1202 mm

Altura ajustable: 1 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 29 W

Protección

IP: 20

IK: 03

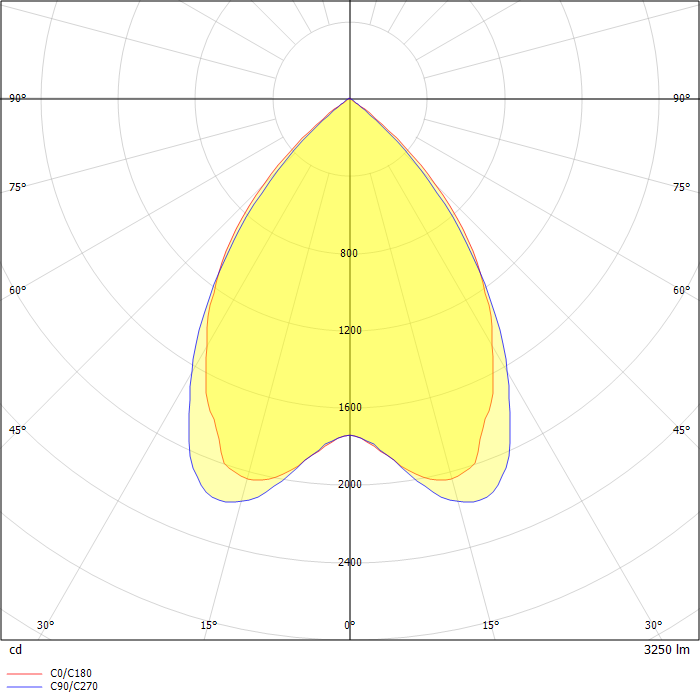

Dato fotométrico

ZIP file
