Hoja de dato de productos

MaxLED 1000 LED Strip Full-Line COB Edge 0m 0,7W 2000lm/m 2.133LEDs/m Tunable White

71117

Paulmann

Imagen de productos 1: MaxLED 1000 LED Strip Full-Line COB Edge   0m   0,7W 2000lm/m 2.133LEDs/m Tunable White
Imagen de productos 1: MaxLED 1000 LED Strip Full-Line COB Edge   0m   0,7W 2000lm/m 2.133LEDs/m Tunable White

Imagen de productos 1: MaxLED 1000 LED Strip Full-Line COB Edge 0m 0,7W 2000lm/m 2.133LEDs/m Tunable White



IP
20

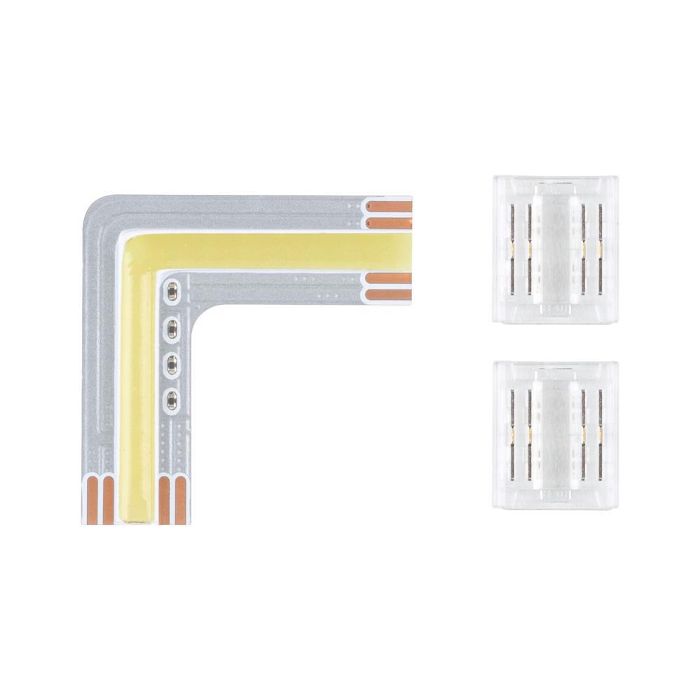

The MaxLED 1000 Edge Full-Line COB corners are a perfect addition for a MaxLED 1000 Full-Line COB light concept, as they allow routing around corners. The COB corners for strips with Tunable White light control ensure that the strips can be placed around 90-degree corners without a break in the light design. Each corner comes with two light connectors. Corners can be connected universally on the left or right. The MaxLED 1000 Full-Line COB Strips emit perfect, glare-free working light for the worktop in the kitchen or garage, or any other work area, and are so powerful that they can also be used as room illumination.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 0,65 W 60 lm 92 lm/W 6351 K 83
MaxLED 1000 LED Strip Full-Line COB Edge   0m   0,7W 2000lm/m 2.133LEDs/m Tunable White

MaxLED 1000 LED Strip Full-Line COB Edge 0m 0,7W 2000lm/m 2.133LEDs/m Tunable White

Emisión de luz 1

1 x LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 30 mm

Anchura: 30 mm

Altura ajustable: 3 mm

Peso: 0,01 kg

Ajustabilidad

Fijo

Diseño

Impresión de Material: Plástico

Color de carcasa: Gris plateado

Eléctrico

Potencia: 0,65 W

Clases de aislamiento: III

Protección

IP: 20

Certificados: CE

Otros números operativos

Intervalo de temperatura ambiente: 3...6 °C

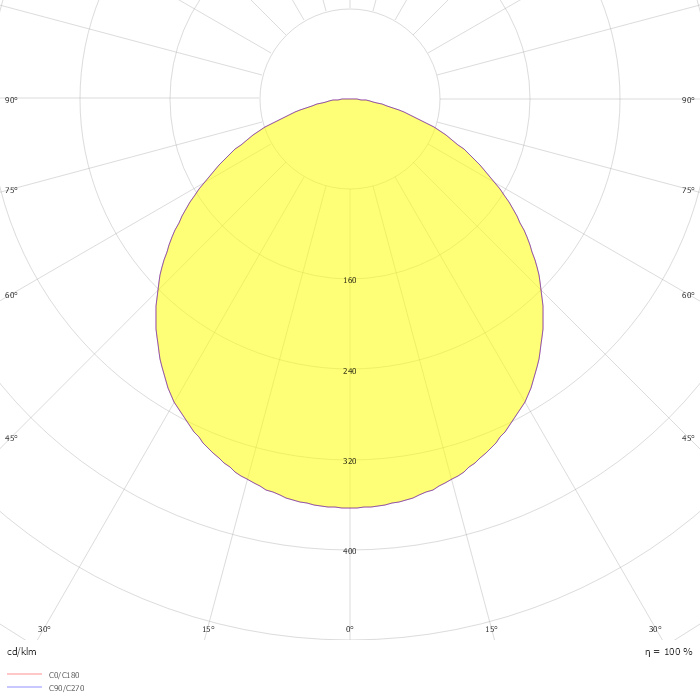

Dato fotométrico
