Hoja de dato de productos

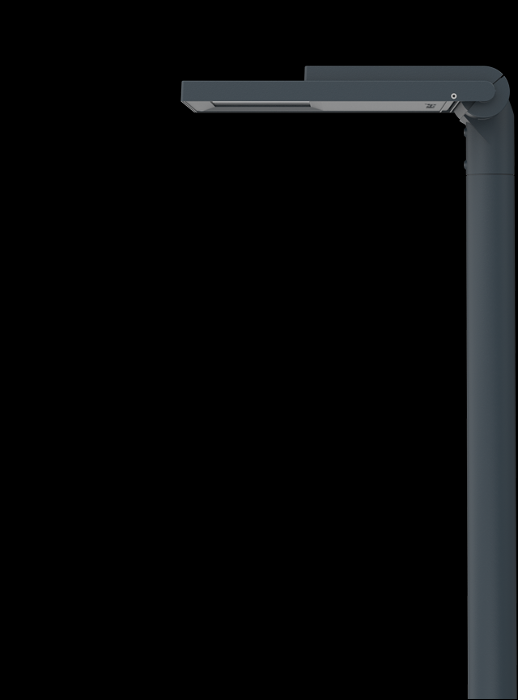

AFL120 [S71] IP66:LED-24/36W/3K

102-0326-70

we-ef

IP66, Class I or Class II. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Integral EC electronic converter. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Can be used as post top or side entry version. Specification at time of order is recommended. Spigot Ø 76 x 100 mm. Spigot Ø 60 x 100 mm or 42 x 100 mm option available. Must be indicated during order placement. Recommended mounting height 3.0-6.0 m, depending on lamp type selected.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
24 x LED 1,5 W 245 lm 104 lm/W 3000 K 70
AFL120 [S71] IP66:LED-24/36W/3K

AFL120 [S71] IP66:LED-24/36W/3K

Emisión de luz 1

24 x LED

Tipo de Montaje

Mástil integrado

Forma y medidas

Longitud: 605 mm

Anchura: 250 mm

Altura ajustable: 192 mm

Peso: 7 kg

Eléctrico

Potencia: 39 W

Clases de aislamiento: I

Protección

IP: 66

IK: 08

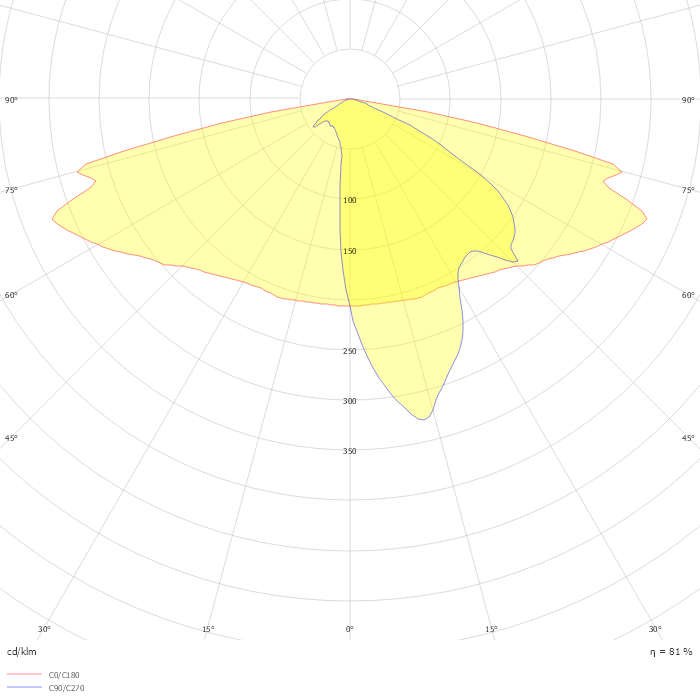

Dato fotométrico

ZIP file
