Hoja de dato de productos

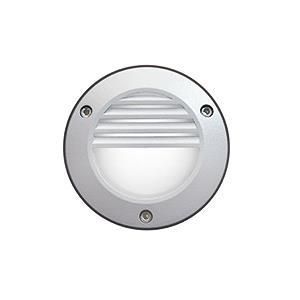

Spia Grid Eyelid 135 1 X 6.3W 70° x 54° 3000 K

GH5297.AHXA300EN

GHIDINI

Series of recessed lighting fixtures characterized by the reduced recess depth. Available in various sizes, they are designed for lighting driveways, walkways, stairs with diffused light. The body and diffuser closure ring are constructed of high oxidation resistant aluminum alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atomospheric agents and UV rays, guaranteeing maximum protection over the years. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The diffuser in sodium calcium tempered opal glass, to guarantee the maximum and uniform distribution of light, is finished with silkscreen border. The external finishing frame and screws are in stainless steel. The external finishing frame and the screws are in stainless steel. There are available also versions with aluminum grille directed downwards to protect the diffuser and improve both its mechanical strength and glare reduction. Recommended in areas subject to vandalism. The product is installed with a polypropylene rough-in housing and is suitable for both concrete and conventional walls. A drywall installation accessory is also available.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 6,5 W 136 lm 21 lm/W 3000 K 90
Spia Grid Eyelid 135 1 X 6.3W 70° x 54° 3000 K

Spia Grid Eyelid 135 1 X 6.3W 70° x 54° 3000 K

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Empotrado en pared

Forma y medidas

Altura ajustable: 7 mm

Diámetro: 135 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 6,5 W

Clases de aislamiento: I

Protección

IP: 67

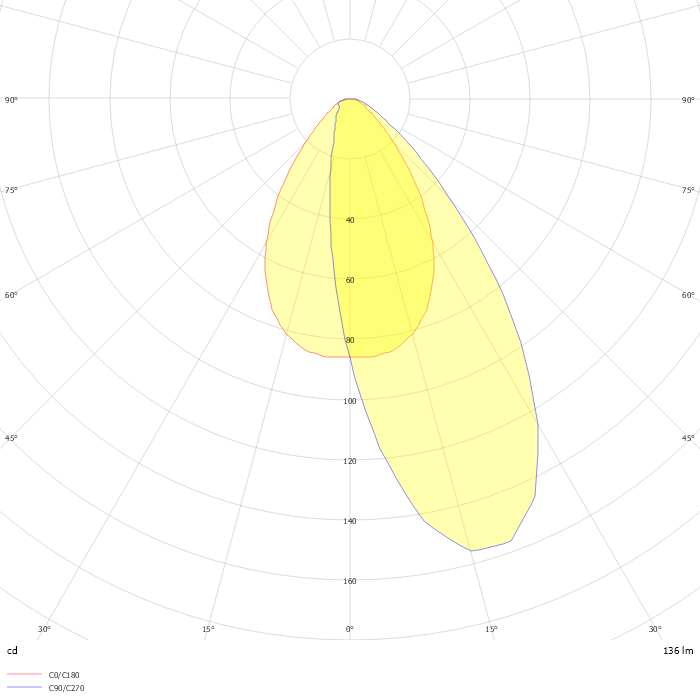

Dato fotométrico

ZIP file
