Hoja de dato de productos

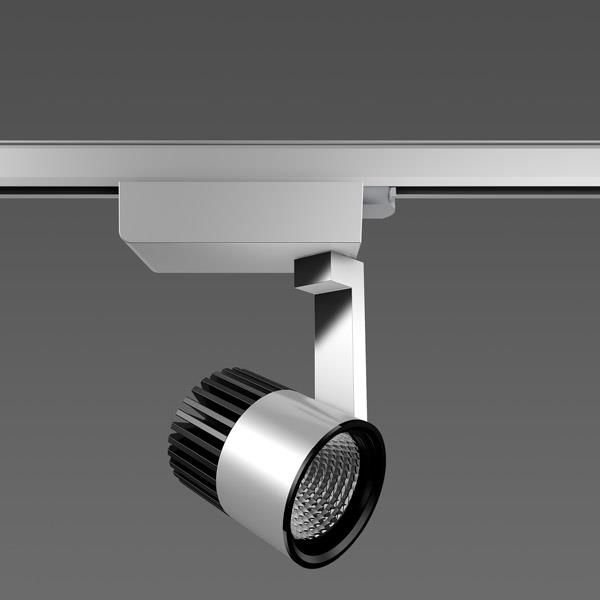

Pura S ECO

741904.004.1

RZB

Series: Pura S ECO Type of Protection: IP 20 Protection Class: I Voltage: 220 - 240 V / 50 - 60 Hz Housing: powder coated die cast aluminium, rotates 356° horizontally and swivels 180° vertically, heat resistant plastic ring. Reflector: faceted aluminium, passive cooling, open version. With multi adapter for 230V 3 circuit tracks. LED included. Available Colours: silver, metallic Type of Installation: Track on ceiling Dimensions: L 258, B 93, H 249 Lamp: LED Life time: 50000 h (L80/B10) Colour Temperature: 4000K Socket 1: without socket Operating Mode Lamp 1: Regulated power supply Safety Marks: F-mark Impact Protection: IK03 (0,35 Joule) Luminaire flux LED: 3150lm System power: 33W Beam Angle: 36° Number of fittings B10A: 15 Number of fittings B16A: 25 Inrush current: 16A Unified Glare Ratio: 18,6 EEC: A++

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 33 W 3150 lm 95 lm/W 4000 K 80
Pura S ECO

Pura S ECO

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 93 mm

Anchura: 258 mm

Altura ajustable: 247 mm

Ajustabilidad

Giratorio, Reclinable

Eléctrico

Potencia: 33 W

Protección

IP: 20

IK: 03

Dato fotométrico

ZIP file
