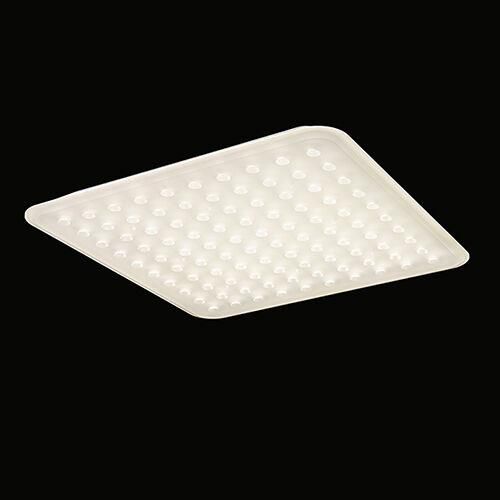

LED surface-mounted ceiling luminaire for direct mounting, closed housing, cover on top made of plastic, high gloss white (RAL 9016), diffuser panel made of acrylic glass with conical indentations for directing light and reducing glare, 340 × 340 mm, 6 mm material thickness, with rounded corners and all round chamfer, both sides matt, suitable for workplace lighting in accordance with DIN EN 12464-1, light distribution approx. 98 % direct beam, wide beam, version with integrated converter for connection to (existing) 230 volts ceiling outlet.
Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 13,8 W | 1755 lm | 127 lm/W | 3000 K | 85 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 340 mm
Anchura: 340 mm
Altura ajustable: 27 mm
Ajustabilidad
Fijo
Diseño
Color de carcasa: Blanco
Eléctrico
Potencia: 13,8 W
Protección
IP: 20

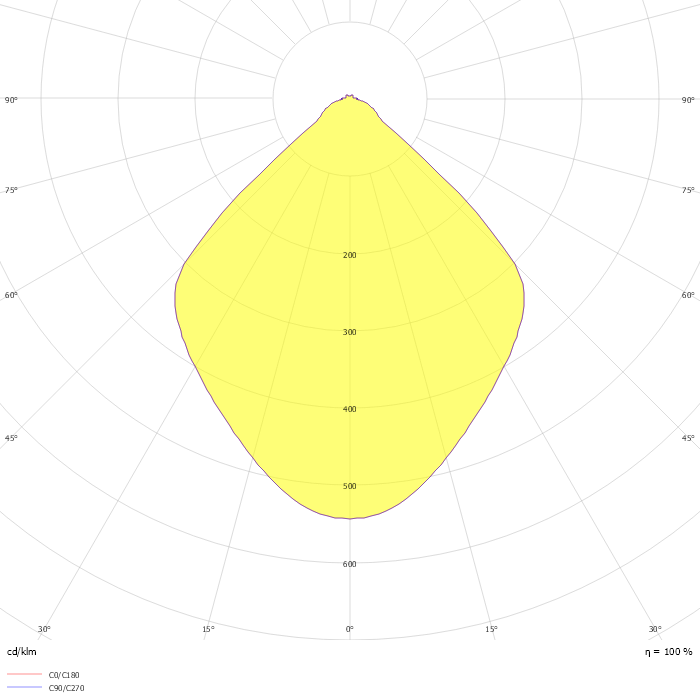

Dato fotométrico
ZIP file
